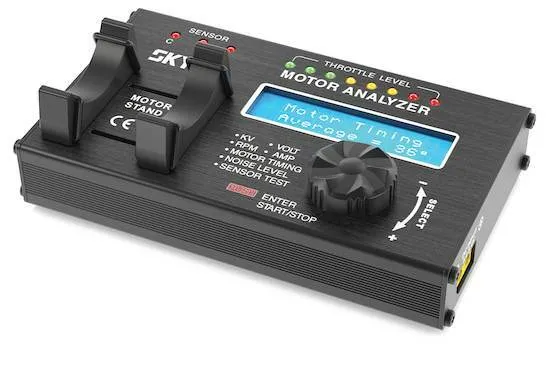

SKYRC Motor Analyzer BMA-01 is a precision electronic device that is especially designed for measuring the KV value, RMP, current drawn, motor timing, vibration noise level and checking the function of hall effect sensors of a brushless motor. It comes with a 2X16 characters LCD that is able to display real time measuring value of either sensor or sensor-less brushless motor.

Specification

• KV Value Accuracy: /- 3%
• Motor Timing Accuracy: /- 4%
• Motor Timing Range:0-70°
• Noise Level Measurement Range : 60dB - 120dB
• Dimension: 136.5mm x 80.6mm x 24.5mm
• Net Weight: 282gram (Without cable)
• Supported Motor: Sensor or Sensor-less Brushless Motor (2 Poles to 36 Poles)
• Current Drawn Less Than 30A at 8.4V Without Loading
• Input Voltage 7.4-8.4V (Suggested to Use 7.4V 2S 1P LiPo Battery)
• LCD Display Screen: Blue Backlight Background, White Text,16 Characters X 2 Lines

Functions

• KV Measurement
• RPM Measurement
• Voltage Measurement
• Ampere Measurement
• Motor Timing Checking
• Noise Level
• Hall Effect Sensor Test
