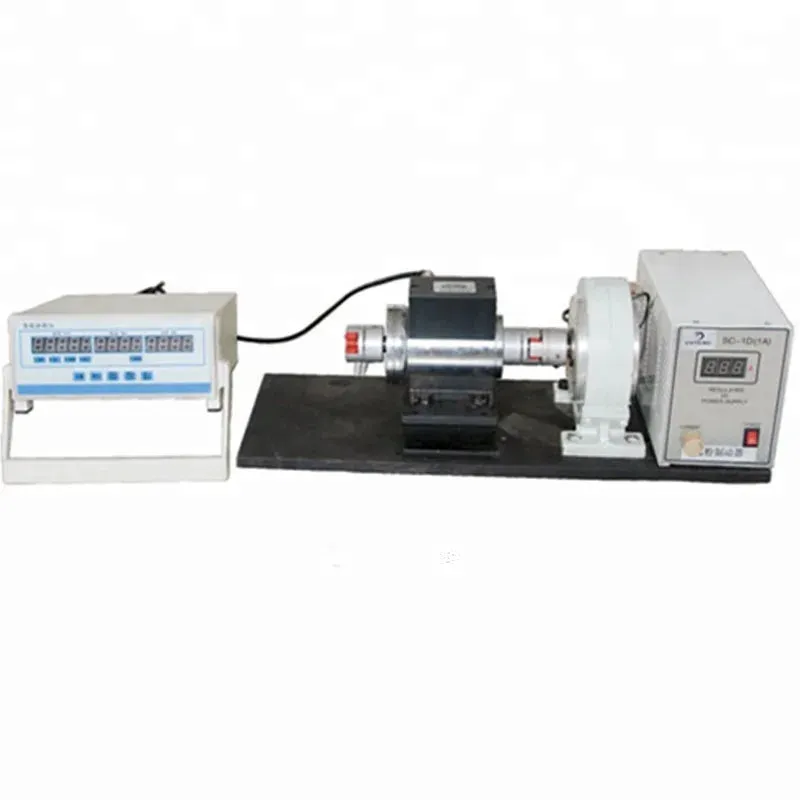

Experience unparalleled precision and ease of use with our Electric Digital Dynamic Motor Torque Meter. This advanced equipment is tailored for detecting a wide range of motors, providing accurate measurements of torque, speed, and power output.
Applications and Usage: Ideal for various industries including motor manufacturing, machinery production, and research institutions, our torque meter is designed to meet the rigorous demands of high-precision testing.
Choose the model you want: 5N.m~200KN.m
Features:
- Precise Measurement: Measure the height and diameter of the sensor's axle and center with exceptional accuracy.
- Versatile Installation: Utilize two groups of coupling to seamlessly install the sensor between power equipment and the load, ensuring optimal performance.
- Adjustable Configuration: Easily adjust the center height and coaxiality of the load, power equipment, and sensors for precise measurements, ensuring reliable fastening without any risk of loosening.
- Flexible Coupling Options: Choose between rigid or flexible couplings based on your specific requirements. Flexible couplings are recommended for environments with significant vibrations or coaxiality exceeding 0.05 mm.
- Robust Construction: Ensure stability and durability with a sturdy installed mesa that provides ample strength for accurate testing.
- Secure Coupling Design: Depend on the shoulder at both ends of the sensor for secure coupling, enhancing stability during operation.
Upgrade your testing capabilities with our Electric Digital Dynamic Motor Torque Meter, offering unmatched reliability and precision for your critical measurements.
|
Model |
NDN-5 |
NDN-10 |
NDN-20 |
NDN-30 |
NDN-50 |
|
Max load value |
5N•m |
10N•m |
20N•m |
30N•m |
50N•m |
|
Load division value |
0.001N•m |
0.01N•m |
|||
|
Maximum speed |
6000rpm |
||||
|
Accuracy |
±1% |
||||
|
Power supply |
±15VDC |
||||
|
Torque accuracy |
<±0.5%F•S,<±0.35%F•S,<±0.1%F•S3 |
||||
|
Frequency Response |
100μs |
||||
|
Nonlinear |
<±0.2%F•S |
||||
|
Importance |
<±0.1%F•S |
||||
|
Backlash |
<±0.1%F•S |
||||
|
Zero when the drift |
<±0.2%F•S |
||||
|
Zero drift |
<±0.2%F•S/10℃ |
||||
|
Output impedance |
350Ω±1Ω,700Ω±3Ω,1000Ω±5Ω(option) |
||||
|
Insulation resistance |
5000MΩ |
||||
|
Static Overload |
120%,150%,200%(option) |
||||
|
Operating temperature |
-10~50℃ |
||||
|
Storage temperature |
-20~70℃ |
||||
|
Voltage |
±15V±5% |
||||
|
Model |
NDN-100 |
NDN-200 |
NDN-300 |
NDN-500 |
|
Max load value |
100N•m |
200N•m |
300N•m |
500N•m |
|
Load division value |
0.1N•m |
|||
|
Maximum speed |
6000rpm |
|||
|
Accuracy |
±1% |
|||
|
Power supply |
±15VDC |
|||
|
Torque accuracy |
<±0.5%F•S,<±0.35%F•S,<±0.1%F•S3 |
|||
|
Frequency Response |
100μs |
|||
|
Nonlinear |
<±0.2%F•S |
|||
|
Importance |
<±0.1%F•S |
|||
|
Backlash |
<±0.1%F•S |
|||
|
Zero when the drift |
<±0.2%F•S |
|||
|
Zero drift |
<±0.2%F•S/10℃ |
|||
|
Output impedance |
350Ω±1Ω,700Ω±3Ω,1000Ω±5Ω(option) |
|||
|
Insulation resistance |
5000MΩ |
|||
|
Static Overload |
120%,150%,200%(option) |
|||
|
Operating temperature |
-10~50℃ |
|||
|
Storage temperature |
-20~70℃ |
|||
|
Voltage |
±15V±5% |
|||
- Warranty : 3 years
- Power : Electronic
- Name : Easy installing electric digital dynamic motor torque meter
- Application : Motor, fan ,reduction gears,etc.
- Interface : Rs232
- All model : 5N.m~200KN.m
- Type : dynamic torque tester,dynamic torque analysis instrument
- Advantage : easy installing,digital display
- Max speed : 4500rpm
- Load scale value : 0.001N.m
- Usage : electric digital dynamic motor torque meter
