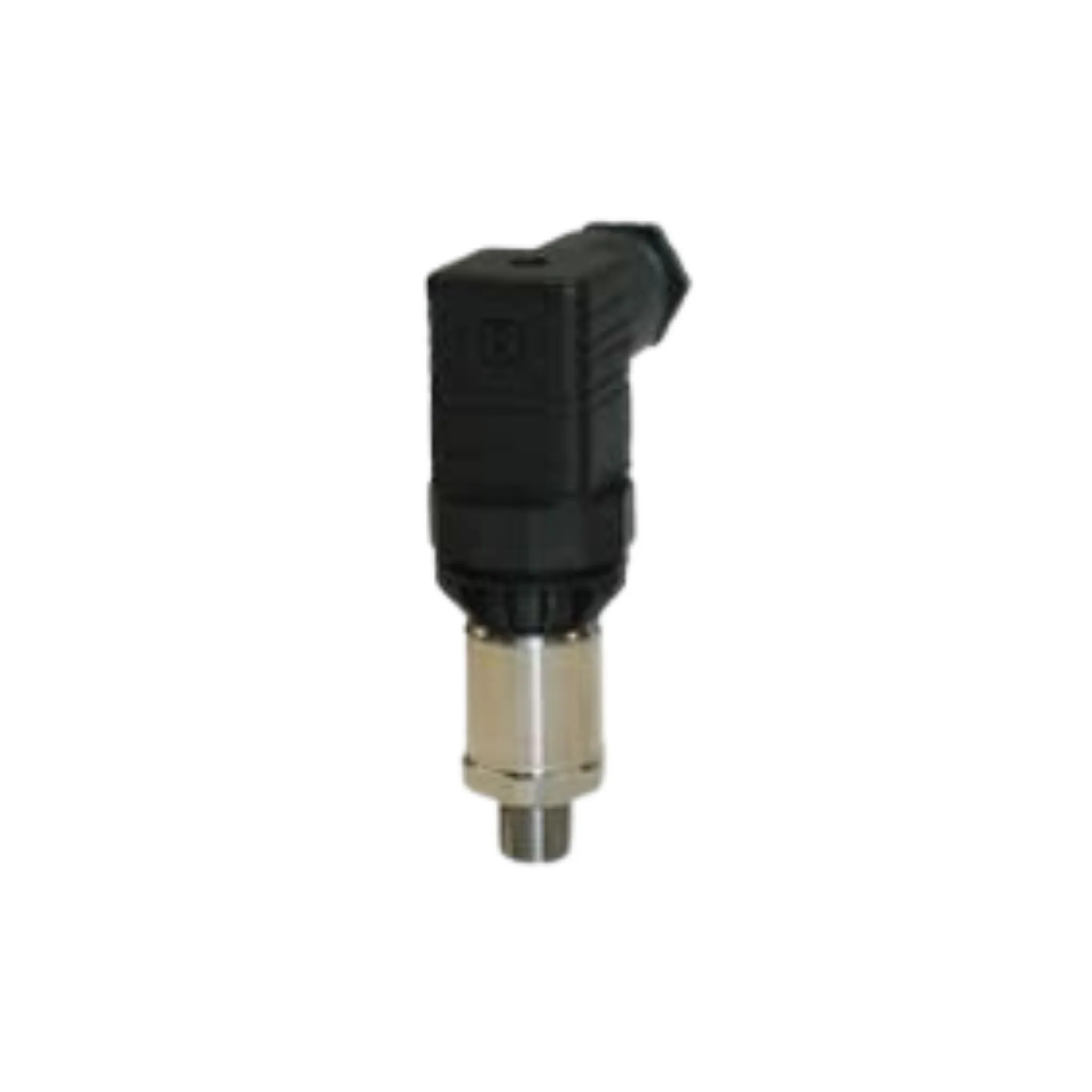

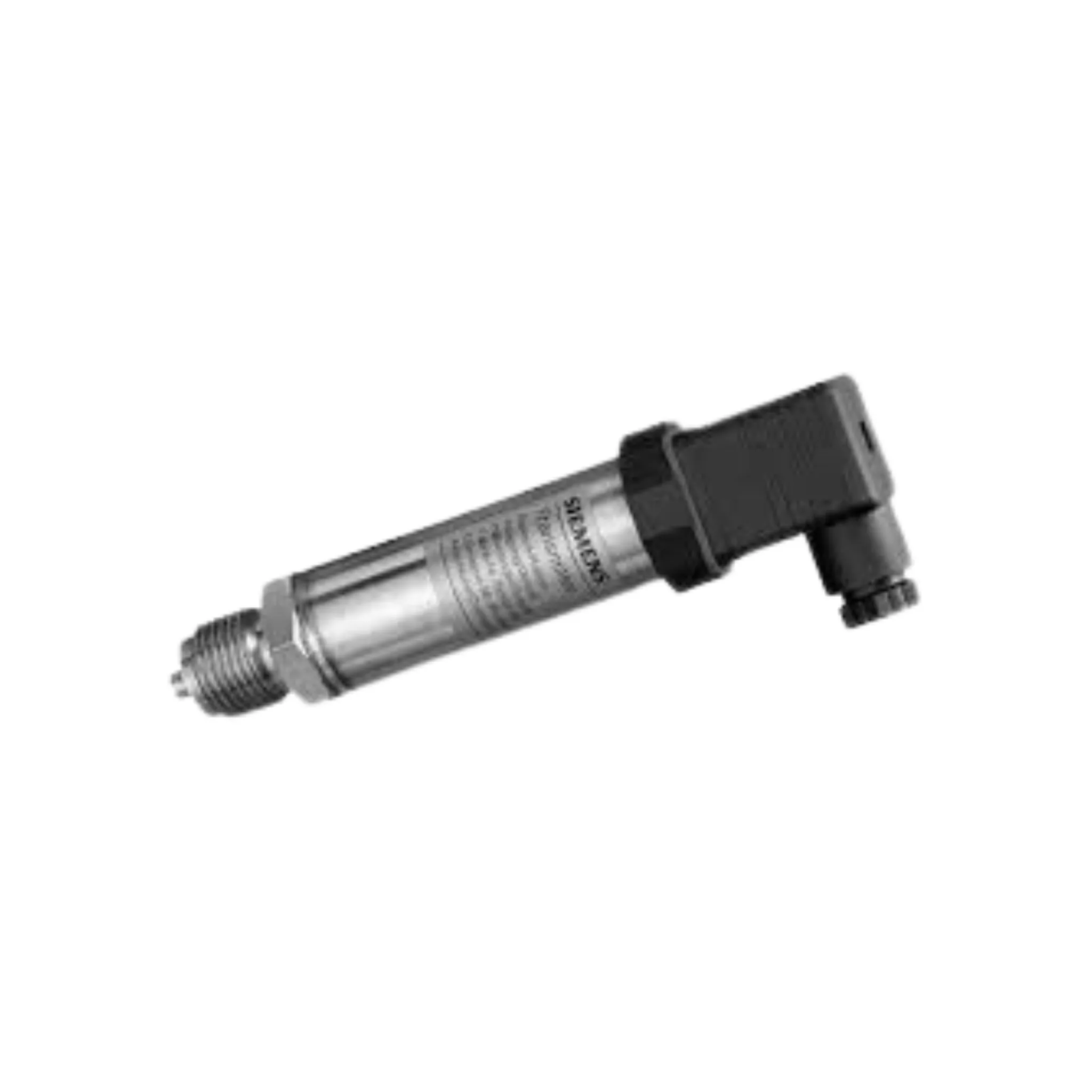

The 7MF Series Pressure Sensors are suitable for the measurement of static and dynamic positive pressure in HVAC facilities, particularly in hydraulic and pneumatic systems using liquid or gaseous media (steam applications). The 7MF Series Pressure Sensors are available in several different pressure ranges, from 0‑15 psid to 0‑300 psid.

Features:

Measurement Unaffected by Temperature Changes
0 to 10 VDC or 4 to 20 mA Output Signals
Piezo‑Resistive Measuring System
No Mechanical Aging or Creepage
Excellent EMC Characteristics

Specifications:

Manufacturer: Siemens Building Technology
Manufacturer Part Number: 7MF15654CB005EA1
Product Type: Liquid Pressure Sensor
Output Signal: 4 to 20 mA
Pressure Range: 0-200 PSIG
Connection Type: Terminal Block
Dimensions: 3.65" x 5.9" x 1.6"
Weight: 2.0 lb.
