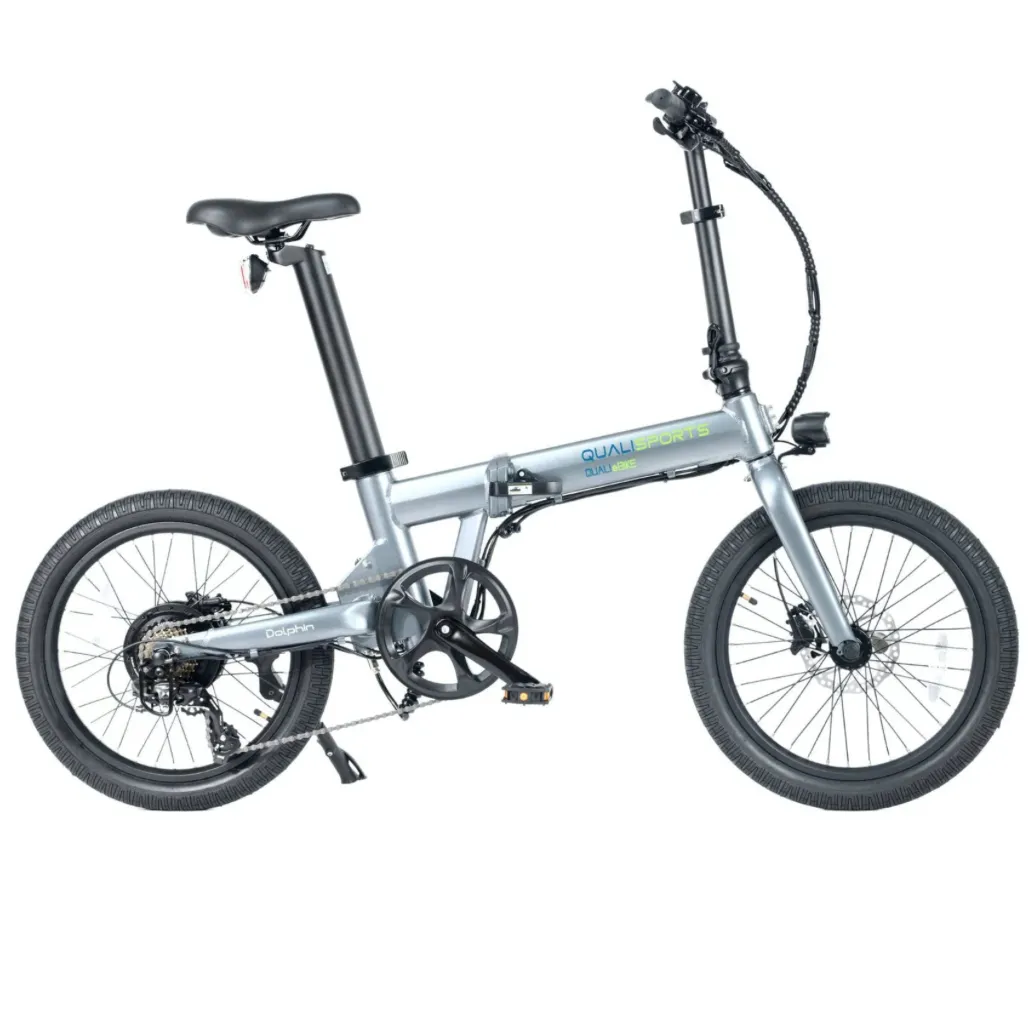

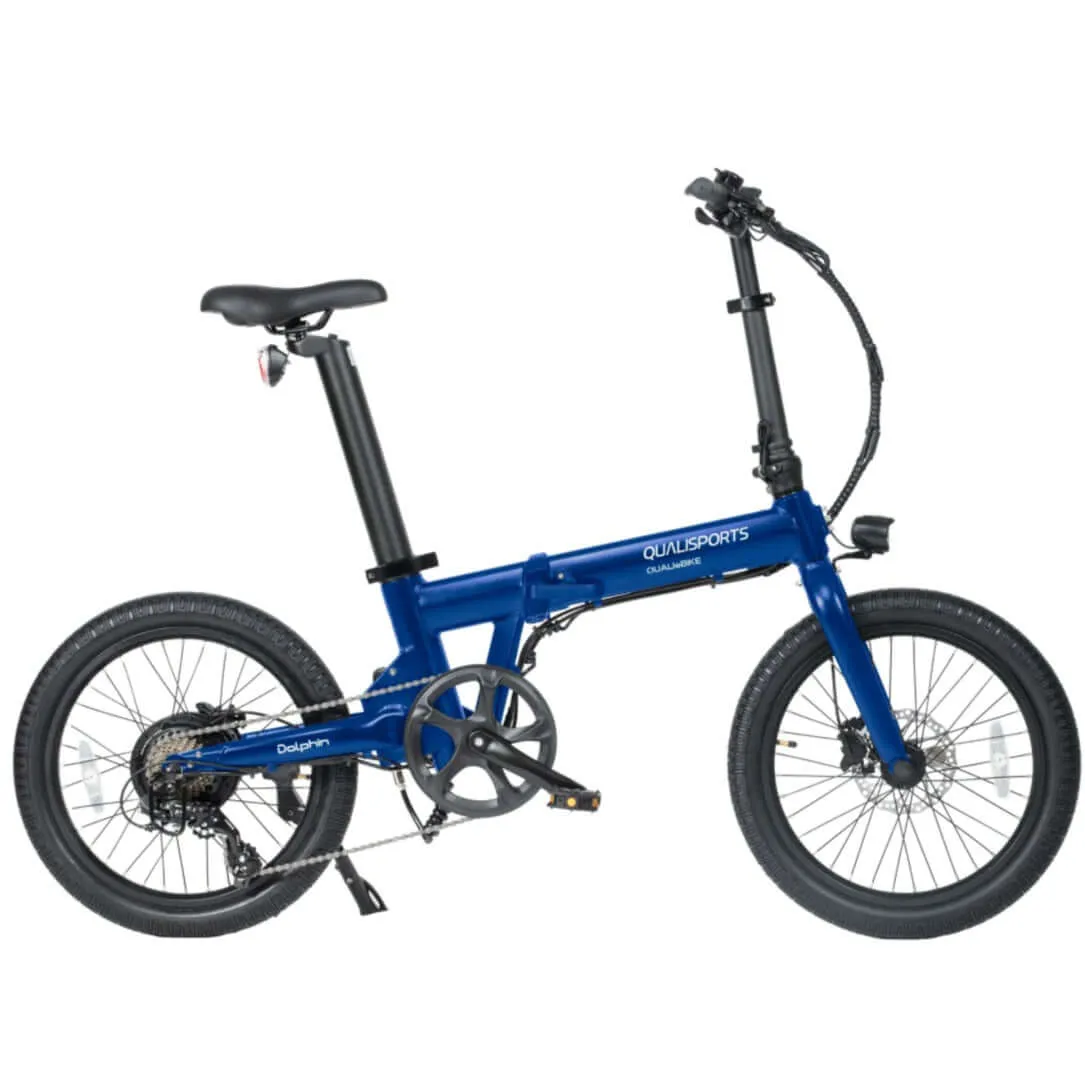

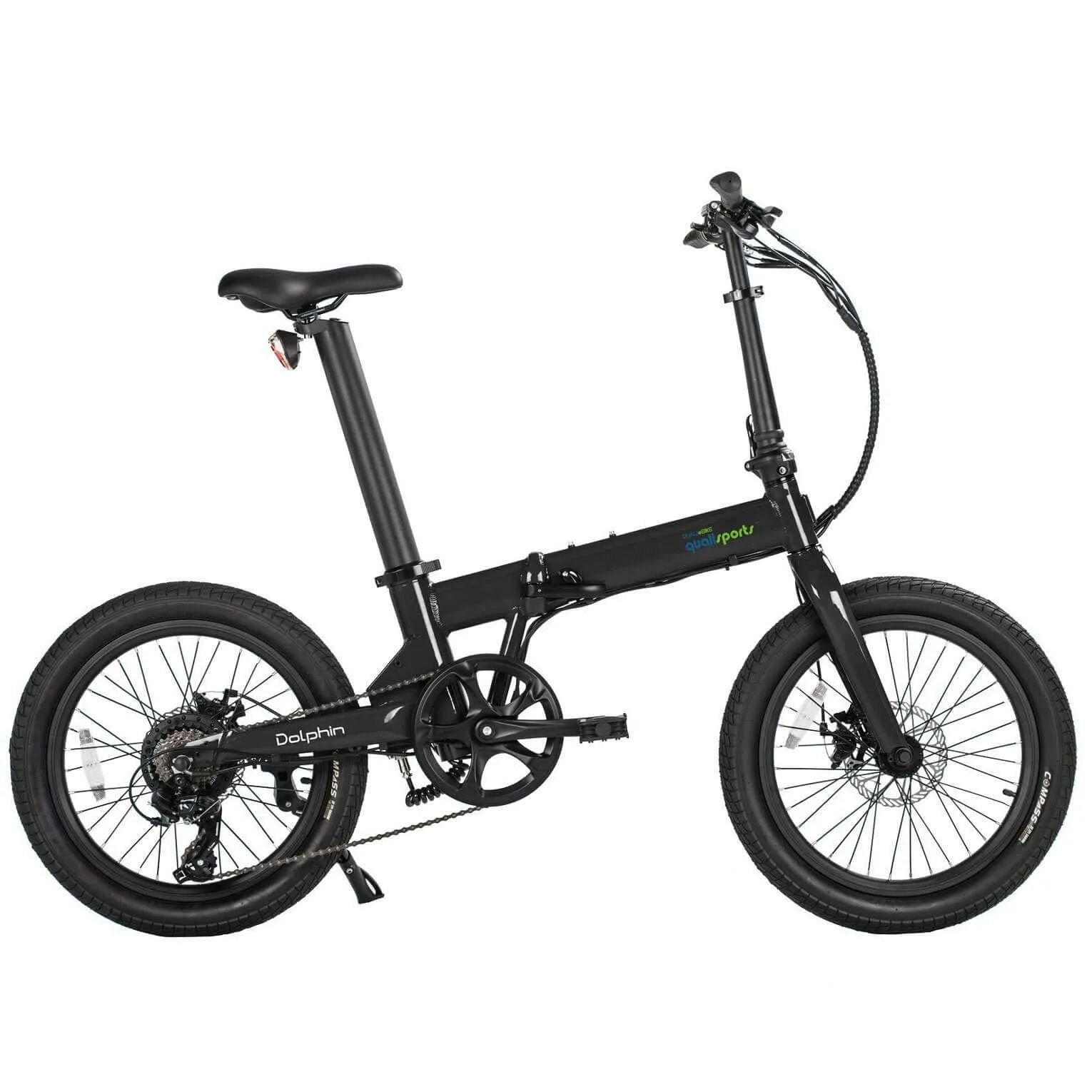

Dolphin 350W 36V/14Ah E-Bike by Qualisports
Imagine cruising around town on this baby! The Qualisports Dolphin Electric Bike has all the styling of a contemporary beach cruiser with every modern convenience to give you a comfortable and exhilarating ride.
Qualisports Dolphin is packed with high-end features generally found on much more expensive e-bikes. It's a powerful, sleek, and a comfortable ride for all different kinds of riders. Use it for commuting, exercise, or to just take a leisurely ride on this comfy e-bike.
The Dolphin is equipped with a Shimano 7 speed system, so every Qualibiker can experience a much more fantastic riding especially when you are hilling.
POWERFUL 36V 350W MOTOR, DISC BRAKES

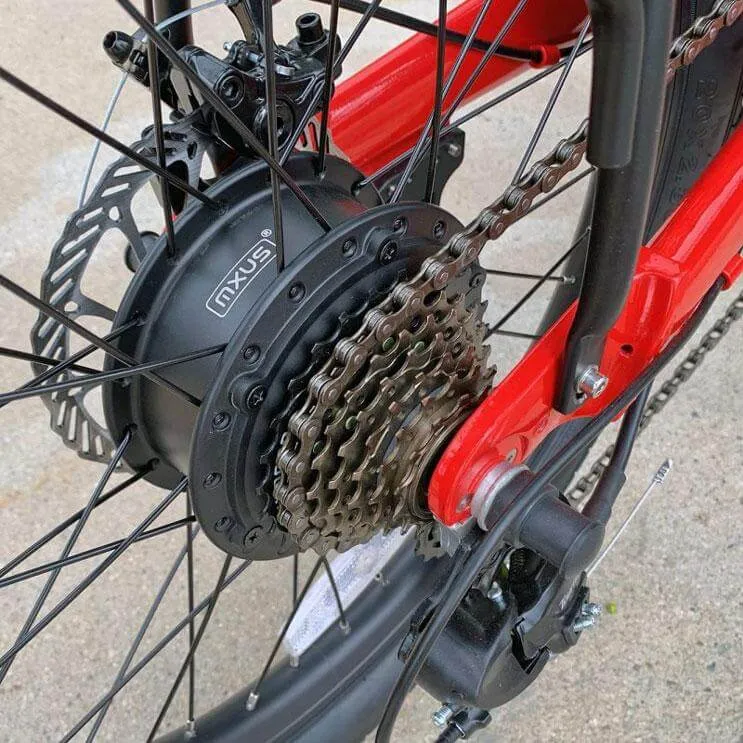

The rear mounted 350W brushless geared motor has been re-engineered from inside and out. New material was utilized in the gears producing a stronger magnetic field is applied inside the motor which achieves a more powerful and efficient motor that will endure a longer lifespan.
BIGGER MORE POWERFUL BATTERY
The Dolphin features a 14Ah Samsung battery, hidden in our patented seat post battery system that lasts longer, is more efficient and encased with full battery-cell protection sleeve. This e-bike will allow Qualibikers to ride between 50-60 miles of utilizing the PAS (Pedal Assist) mode and 30 miles range on the throttle mode in a single charge.
The intergraded customized BMS system protects the battery from over charging, over heating, stabilizes and regulates current output.
PEDAL ASSIST AND THUMB THROTTLE GIVES YOU POWER ON DEMAND
The Dolphin features a 14Ah Samsung battery, hidden in our patented seat post battery system that lasts longer, is more efficient and encased with full battery-cell protection sleeve. This e-bike will allow Qualibikers to ride between 50-60 miles of utilizing the PAS (Pedal Assist) mode and 30 miles range on the throttle mode in a single charge.

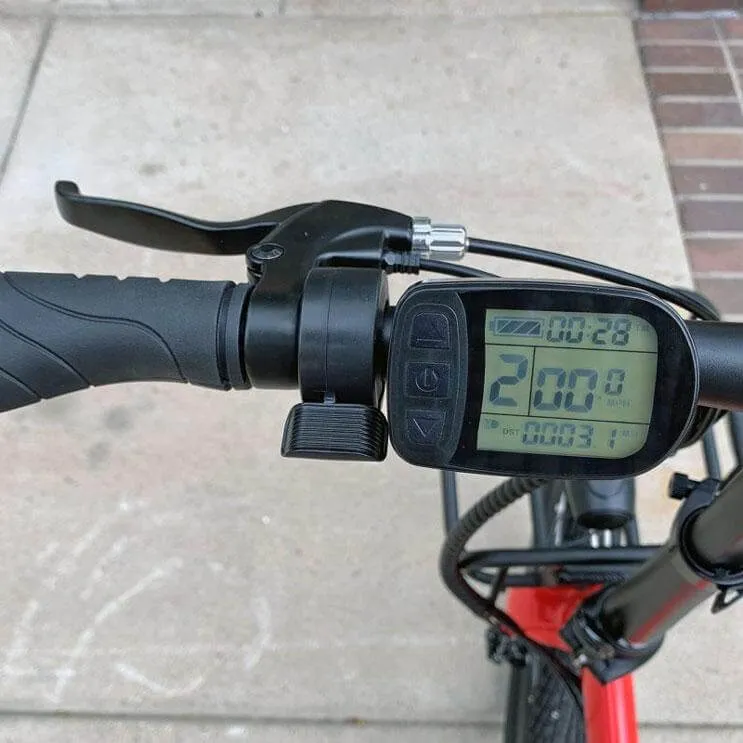

We also intergraded a multi-fuction LCD display on board together with a 12 dots Cadence Sensor to help the riding experience more enjoyable. The LCD panel has the following visual indicators on it. 5 levels of PAS (Pedals Assist levels - 5 levels), battery level indicator, timer, speed, distance, average speed, trip distance, trip timer, ODO, max speed, battery voltage indicator, Lamp on/off, back lights, walking mode and cruise control mode.
Qualisports Dolphin Folding E-Bike Features:
- Motor: MXUS Brushless geared DC motor
- Battery: Samsung Lithium-ion
- Battery Capacity: 36V 14Ah
- Range: 62.5Miles（PAS）
- Brakes: 160mm disc brakes
- Tires: 20x2.35"
- Frame: 20 inch 6061 Al-Alloy Foldable
- Max Load: 300lbs
- Display: Kunteng LCD

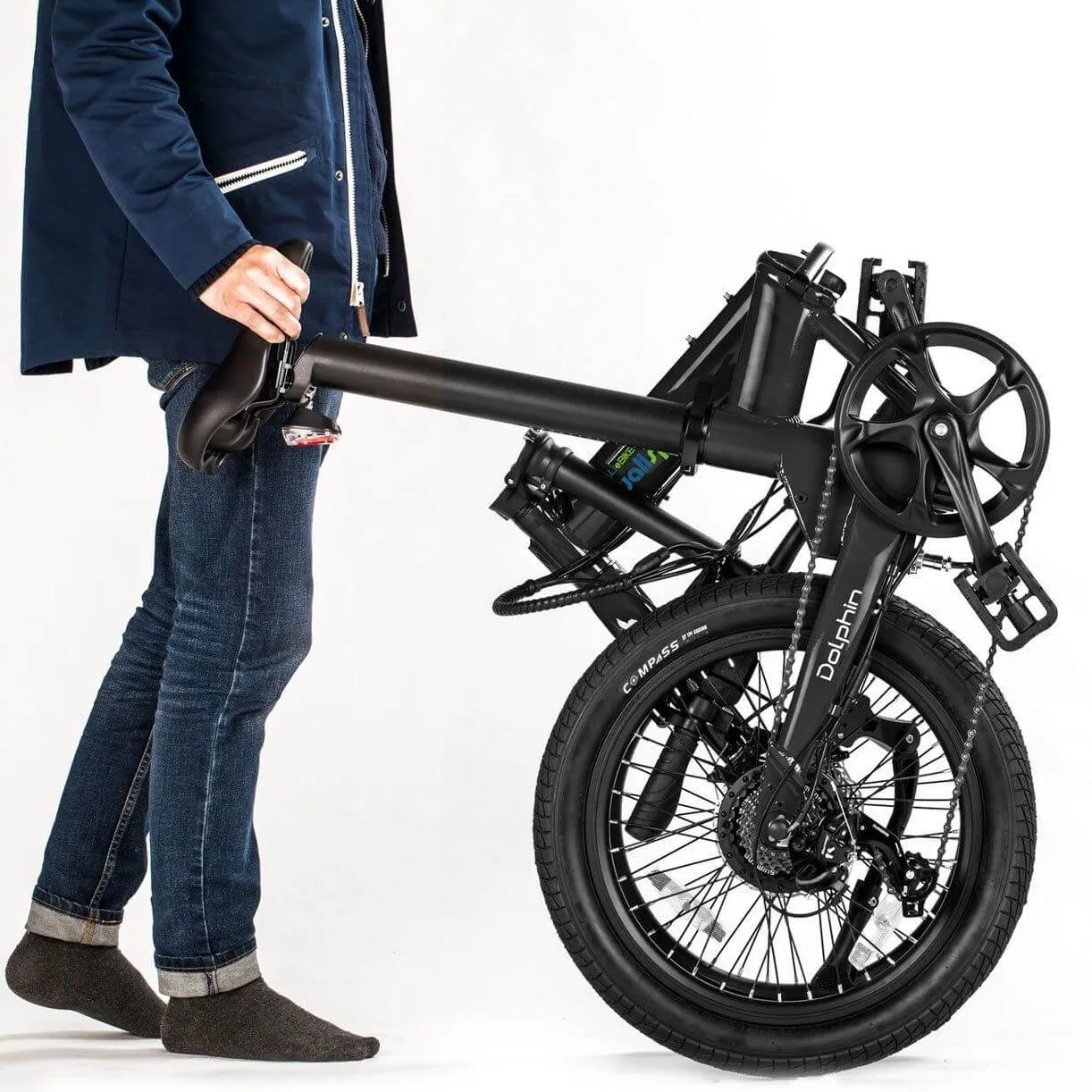

- Folded Size: 33” x 14.5” x 28.5”
- Unfolded Size: 63” x 24” x 44”
- Vehicle Weight: 50 lbs

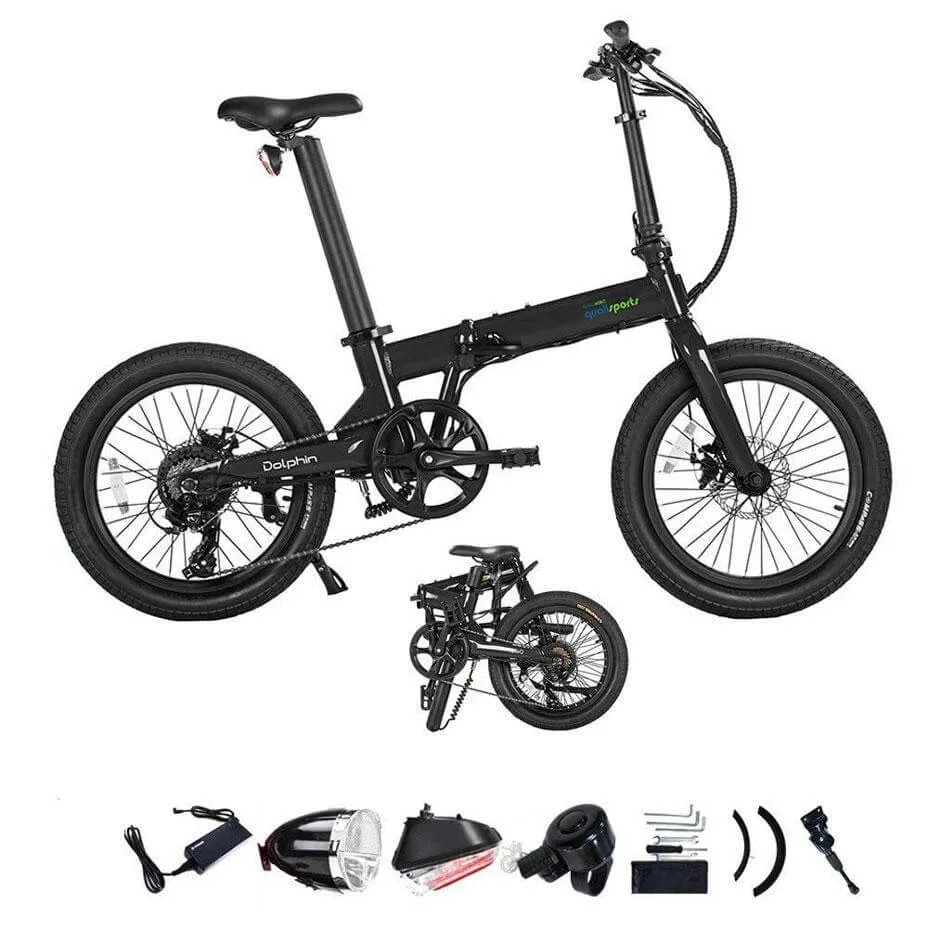

- Free Fenders /Head Light/ Rear Light/ Bell/ Tool Bag /Thumb Throttle / Kick Stand
- Free and fast shipping
- No sales tax
Qualisports Dolphin Electric Bicycle Specifications:
| Product name | Dolphin |
| Model name | QSEB 03 |
| Motor | MXUS Brushless geared DC motor |
| Size | 62.9*23.3*44.1inch |
| Folding Size | 32.6*18.9*27.5inch |
| Wheelbase | 43.5inch |
| Net weight | 50lbs |
| Range | 62.5Miles（PAS） |
| Max. load | 300 lbs. |
| Charging time | 6~7 Hrs |
| Battery type | Samsung Lithium-ion |
| Battery capacity | 36V 14Ah |
| Noise | ≤ 62 dB(A) |
| Rated output power | 350W |
| Motor efficiency | ≥85% |
| Rated RPM | 310±10r/min |
| Rated voltage | 48V |
| Max torque | 40N.m |
| Overcurrent protection | 15±1A |
| Low-voltage protection | 30±1V |
| Kwh | ≤1.2Kw.h |
| Modes | 5 levels |
| Tire diameter | 20x2.35 Inch |
| Frame | 20 inch 6061 Al-Alloy Foldable |
| Front fork | 20 inch 6061 Al-Alloy |
| Brakes | 160mm disc brakes |
| Rim | 20 inch Al-Alloy 12G36H |
| Tire | 20x2.35" |
| Chain wheel | Prowheel 52T |
| Free wheel | Shimano 14-28T |
| Derailleur | Shimano 7 speed |
| Chain | KMC |
| Handle bar | Promax |
| Display | Kunteng LCD |
| Controller | Kunteng sine wave FOC |
| Brake levers | Al-Alloy e-bike lever |
| Saddle | KNUS |
| Pedal | Foldable Pedals |
