Product Details

PFO, semiconducting polymer for high efficiency green OLEDs

High quality polymer available for fast, secure dispatch


| |


Poly(9,9-di-n-octylfluorenyl-2,7-diyl), known as F8 or PFO, is a polyfluorene specifically optimized for a variety of organic electronic applications.

General Information


CAS Number19456-48-5
Chemical Formula(C29H41)n
Full NamePoly(9,9-di-n-octylfluorenyl-2,7-diyl)
Recommended solventsToluene, xylene, chlorobenzene
Synonyms

F8

PFO

Classification / FamilyPolyfluorenes, Benzothiodiazoles, Organic semiconducting materials, Semiconducting polymers, OLED green emitter materials, OLED materials, Organic photovoltaic (OPV) materials, Polymer solar cells, OFET materials

Chemical Structure

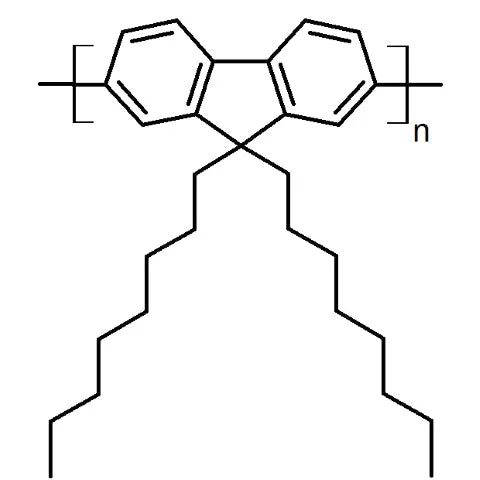

Chemical structure of PFO (F8). CAS No. 19456-48-5. Chemical formula: (C29H41)n.

Characterization


F8 distribution plot

Applications


For a high-efficiency green OLED we recommend blending F8 with with the below specifications. This ink can then be applied either in air, or in a glove box, with little difference in performance (provided exposure time and light levels are minimised). .

At typical concentrations of 10 mg/ml, 100 mg of F8 (PFO) will make around 200 devices on Ossila's (20 x 15 mm), assuming 50% solution usage (50% loss in filtering and preparation).

OLED reference device:
  • F8 with
  • Blend ratio of 19:1 (F8:F8BT) in Toluene
  • Total concentration of 10 mg/ml
  • Spun at 2000 rpm (approx. 70 nm thickness)

Pipetting 20 μl of the above solutions onto a substrate spinning at 2000 rpm should provide a good even coverage, with approximately 70 nm thickness. The substrate needs to be spun until dry, which is typically only a few seconds — 15 seconds should be ample to achieve this. Thermal annealing should be undertaken at 80°C for 10 minutes prior to cathode deposition.

Typical Device Architectures and Performance

A basic, efficient OLED can be made using as a hole-transport layer and Calcium/Aluminum as the electron contact. When used with the Ossila and this produces an easy to fabricate yet efficient >100 cd/m2 device.

Typical Ossila device architecture: Polyfluorene-based OLED architecture based on F8 blended with F8BT.

MSDS Documentation


Batch Details


Batch numberMWMNPDIStock info
M161114,05037,9103.00Discontinued
M16285,98331,0402.77Discontinued
M16357,79821,3282.71Discontinued
M16463,11419,1253.30Discontinued
M0161A1105,49145,2752.33Discontinued
M0161A277,29329,1672.65Discontinued
M0161A3260,81793,7092.78In stock
PFO (F8)
  • M0161A3
  • 500mg
  • 1g

$ 82.77

$ 63.67

Please select combo product attributes
The combo subtotal is $,SAVE$
Unavailable
