Additonal Features:

• Compact, high precision power analyzers – easy to carry and save working space
• Simple user interface ensures easy, intuitive operation
• Standard configurations allow users to specify the exact functionality required for their own unique application
• Accurately display dynamic events on all phases at exactly the same point in time with simultaneous parallel acquisition of all phases
• All inputs are galvanically isolated to avoid short circuits in all applications
• Voltage, current and power harmonics up to the 40th
• FFT analysis, vector diagram display, recorder function and Digital Oscilloscope (DSO) mode included
• User-selectable average time – from 15 ms up to 3600 s – for dynamic measurements
• 4 MB on-board memory for storage of measured values
• RS232 and USB available as standard; optional IEEE 488/Ethernet available
• Optional process interface available to measure torque and speed with external sensors; includes four analog outputs for easy use on motor and drive applications
• 341 kHz or 1 MHz sample rates for detailed signal analysis
• Bandwidth from DC to 3 MHz / 10 MHz for reliable measurement precision
• Includes Fluke NormaView PC software for setup, data download, analysis & report writing

Included Accessories:

• Power supply cable
• 5.7“ / 144 mm color display
• Internal printer
• RS232/USB interface for data download
• Space for six power-phases and options
• Fluke NormaView PC software
• User’s manual
• Test certificate
• Calibration values

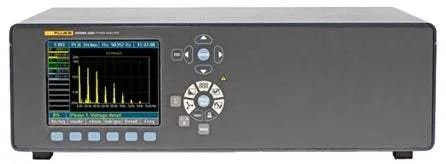

Providing the highest bandwidth on the market, the Fluke N5K 3PP54IP Six-Phase Power Analyzer is the ideal test and analysis tool for the development of frequency converters and lighting equipment. Features include: 3 to 6 power phases, optional internal printer, and all of the Fluke Norma 4000 features and functionality described above.

The image is for reference only.
