The Chatillon® SLC Series loadcells are designed to be used exclusively with the Chatillon DFS-R-ND Series digital indicator.

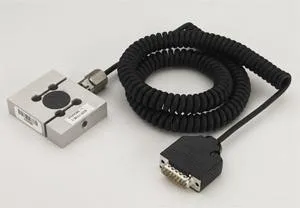

The CHATILLON® SLC Series load cells are full-bridge strain gauge sensors complete with 15-pin plug. These load cells are used with the Chatillon DFS-R-ND Series digital indicator. They may also be used with the Chatillon TCD Series digital force testers (recalibration with a TCD Series Console is required).
The load cell values and sensitivity factors are stored in memory within the sensor plug. When connected to a DFS-R-ND indicator or TCD Series force tester, the capacity and calibration points are automatically recognized by the instrument. The instrument then becomes a full-featured load measurement instrument. The load cells are connected to the DFS-R-ND or TCD Console with a retractable cord that extends fully to nearly 9 ft. (3 m).
- Plug & Play Operation
- DFS-R-ND Gauge
- TCD110, TCD225 or TCD1100 Digital Testers
- Accuracy up to 0.1% FS
- NIST Calibration with Data
- 1 Year Warranty
