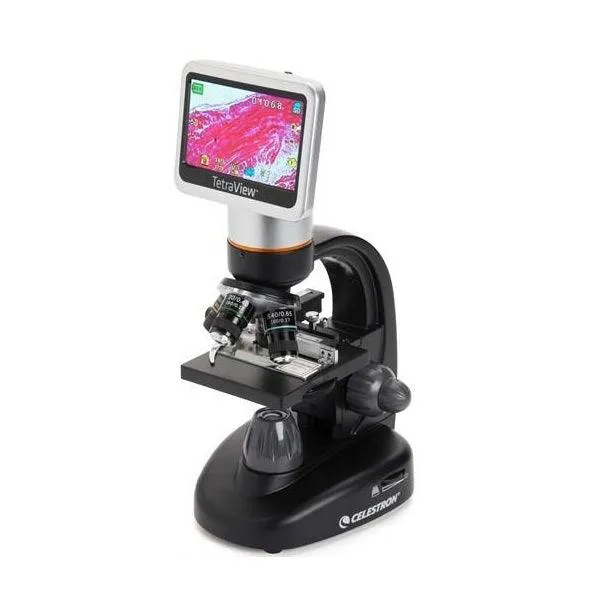

Celestron TetraView LCD Digital Microscope

The professional-level Celestron TetraView LCD Digital Microscope is a touchscreen LCD microscope with advanced features at a reasonable price. TetraView features four fully achromatic lens objectives, a fully mechanical stage, a 4.3” TFT full color touch screen, 5MP CMOS sensor, and a 2GB SD card for storing your photos and videos. Taking high-resolution images and video of specimen slides has never been easier.

The LCD screen rotates 180° so you can easily share your viewing with others. For an even bigger audience, use the TV output to display on a television or projector. With magnification from 40 to 400x (1600x with digital zoom), TetraView is ideal for viewing a range of cellular specimens on slides.

Great for the discriminating professional or serious hobbyist, the TetraView microscope is an excellent tool for labs, schools, scientific research, and more.

Additional Features:

40x to 400x magnification (up to 1600x with digital zoom)
4.3" LCD touchscreen
5MP CMOS built-in digital camera
4 fully achromatic objective lenses: 4x, 10x, 20x, 40x
Adjustable LED bottom illumination
180° rotatable LCD screen
Fully mechanical stage
Coarse and fine focus knobs
Filter wheel/diaphragm
AV/TV output
Battery power option (4AA batteries)
2GB SD card included (SD card slot supports up to 32GB)
Universal AC adapter with multi-plugs for international usage
Accessories included: 7 prepared slides, hard carrying case, dust cover, touch pen, USB cable, AV out cable

Technical Specifications

Type of Microscope:	LCD Desktop
Head:	180° rotatable head w/4.3" TFT LCD Screen
Nosepiece:	Quad with click stop
Objective(s) Type:	(4) Achromatic objectives on turret
Objective(s) Standard:	DIN 35 RMS
Objective(s) Magnification:	4x, 10x, 20x, 40x
Objective(s) Thread:	WJ 4/5" x 1/36"
Focus Type(s):	Course Focus and Fine Focus
Focus Travel (per rotation):	0.7mm to 35.3mm (.027" to 1.39") (est.)
Magnification Range:	40x, 100x, 200x, 400x, Up to 1600x with digtial zoom
Illumination Type:	LEDs
Illumination Position(s):	TBD
Illumination Adjustability Mechanism:	Adjustable wheels at base
Power Source:	Universal 100 to 240V, 50/60 hz multi-country plug and (4) AA (optional)
Battery Options:	Yes (4AA)
Stage:	Fully mechanical with metal clips, 88mm x 88mm (3.5" x 3.5") - With Filter wheel (Red, blue, green \| 1mm, 3mm, 6mm apertures)
Condenser Type:	Aplantic
Condenser N.A.:	N.A. 65
Stage Diaphragm:	Multiple on wheel
Eyepiece Type:	CMOS Sensor in lieu of eyepiece
Sensor Size:	5MP - 1/2.5"
Pixel Size:	2.2 μm
Screen type:	High definition touch, 480 x 272 pixels resolution, 109mm (4.3") with 4x digital zoom, rotates 180°
Screen Size:	4.3"
Memory Type:	SD Card
Memory Size:	8G SD included, Supports up to 32G
Port(s) In:	AC Plug (power), SD Card slot (32Gmax)
Port(s) Out:	Video/ TV out, USB 2.0
AC Adapter:	5-6V DC, 200-1000mA tip positive electrical input. Jack should be 5.5mm (.21") OD, 2.1mm (.08") ID and 12.5mm (.49") long
Still image capture resolution:	1920x1080 2048x1152 2560x1440 3072x1728 3648x2048 3072x1728
Video resolution:	VGA (640 x 480)
Shutter trigger position:	On LCD Screen
Software:	Internal Firmware
Microscope Dimensions:	78mm x 140mm x 330mm (7" x 5.5" x 13")
Microscope Weight:	67 oz (1.9 kg)
Included Items:	8GB SD Card USB 2.0 Cable (data transfer) 7 Prepared Slides 4 plug, multi-country AC adapter Dust Cover Carrying Case
