Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | BES M08MI-PSC20B-BV03 |
| Approvals | CE |
| Body Style | Cylindrical |
| Cable Diameter | 3.0 mm |
| Cable Jacket Material | PVC |
| Cable Length | 3 m |
| Dropout Voltage | 2.5 V |
| Housing Material | Brass |
| Hysteresis | 0.15 |
| Measurement Range | 2 mm |
| Mounting Type | M8 Threaded Flush |
| Number of Conductors | 3 |
| Output | PNP-NO |

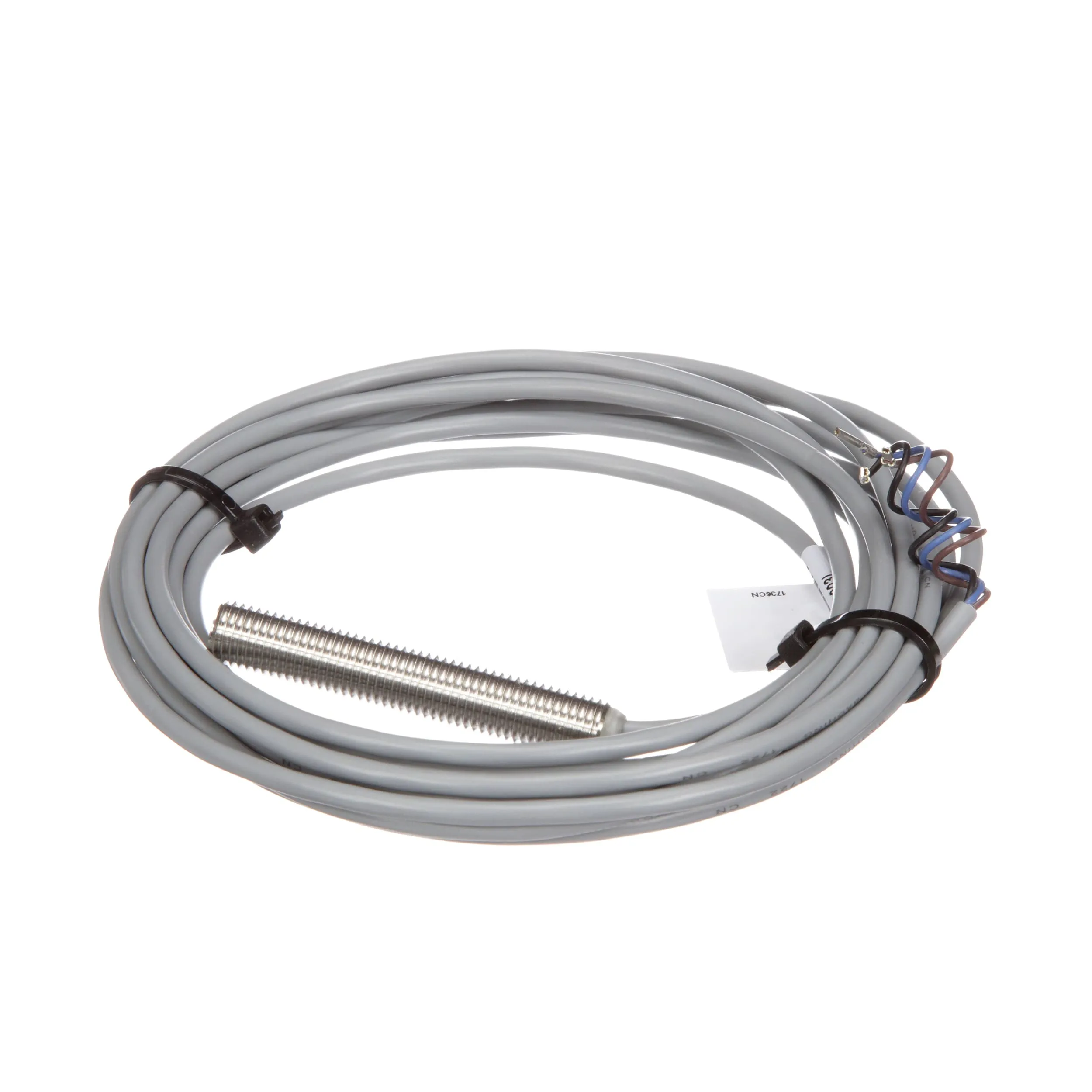

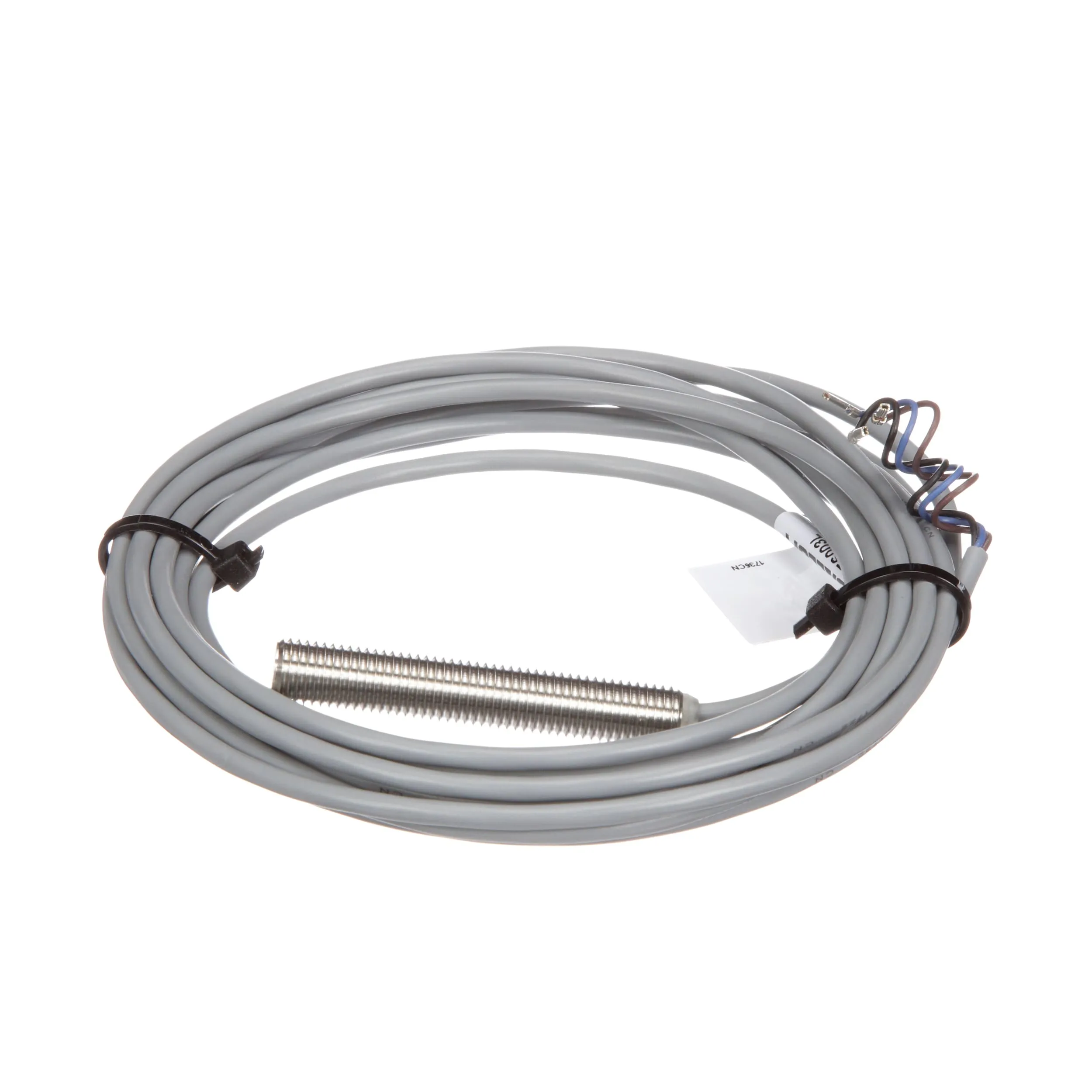

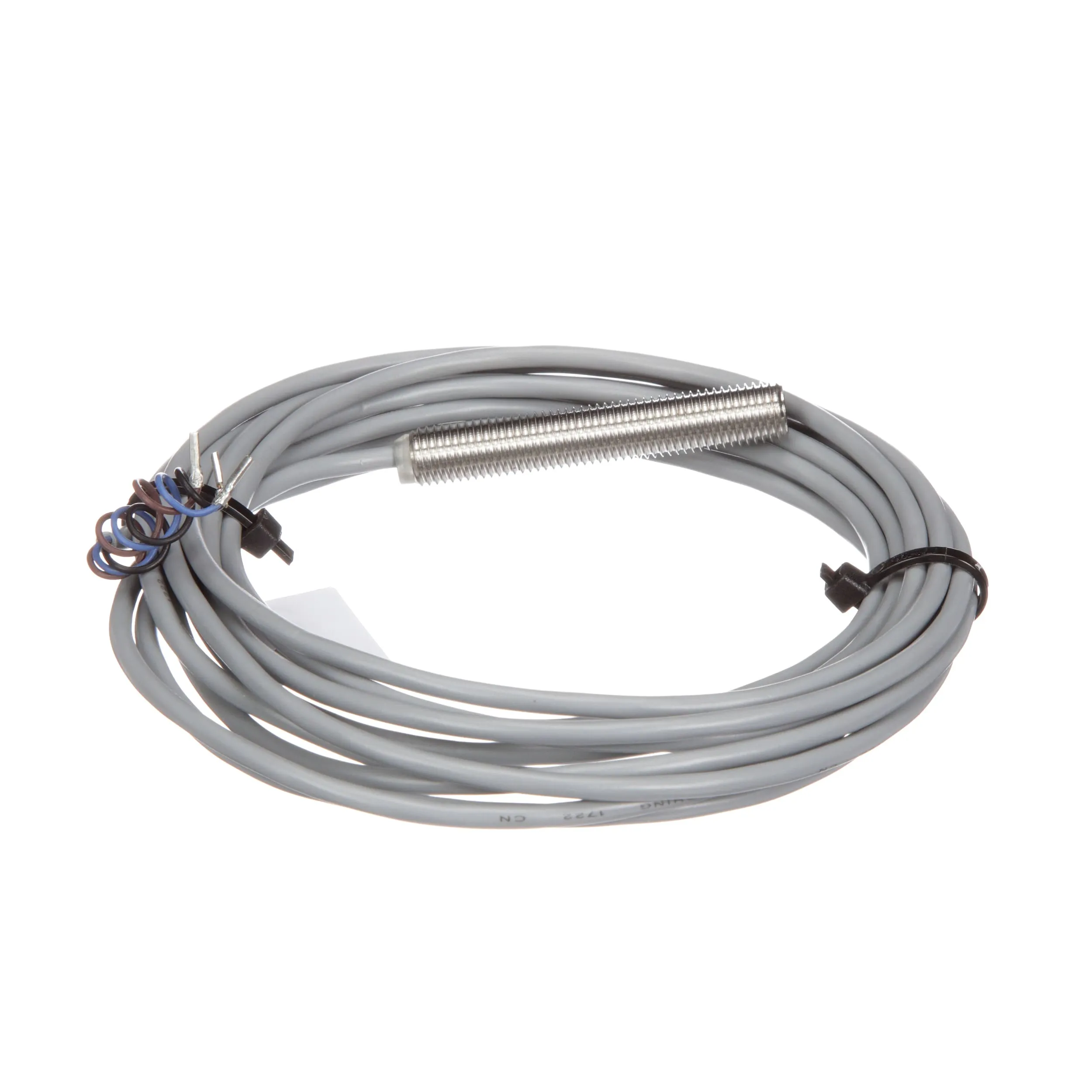

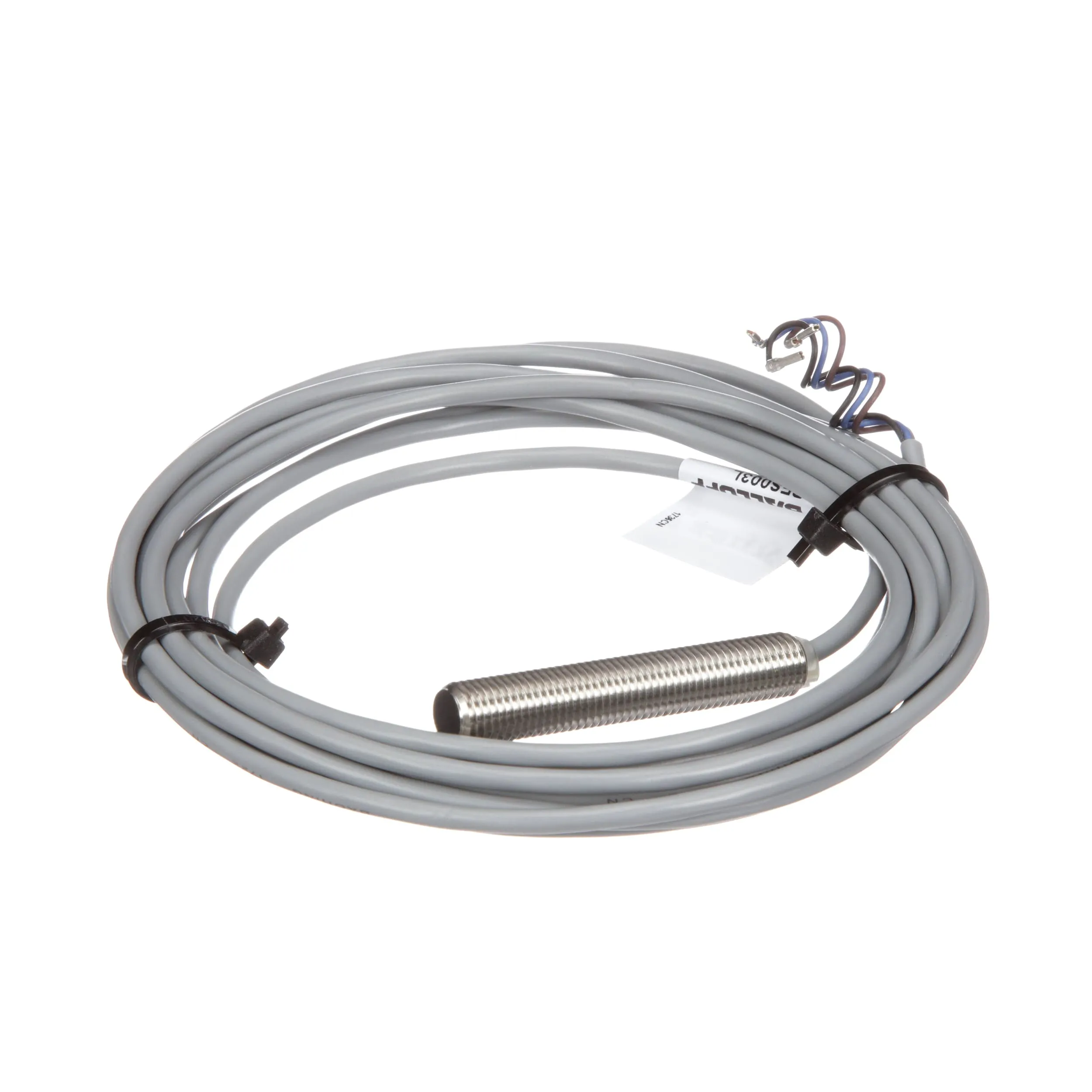

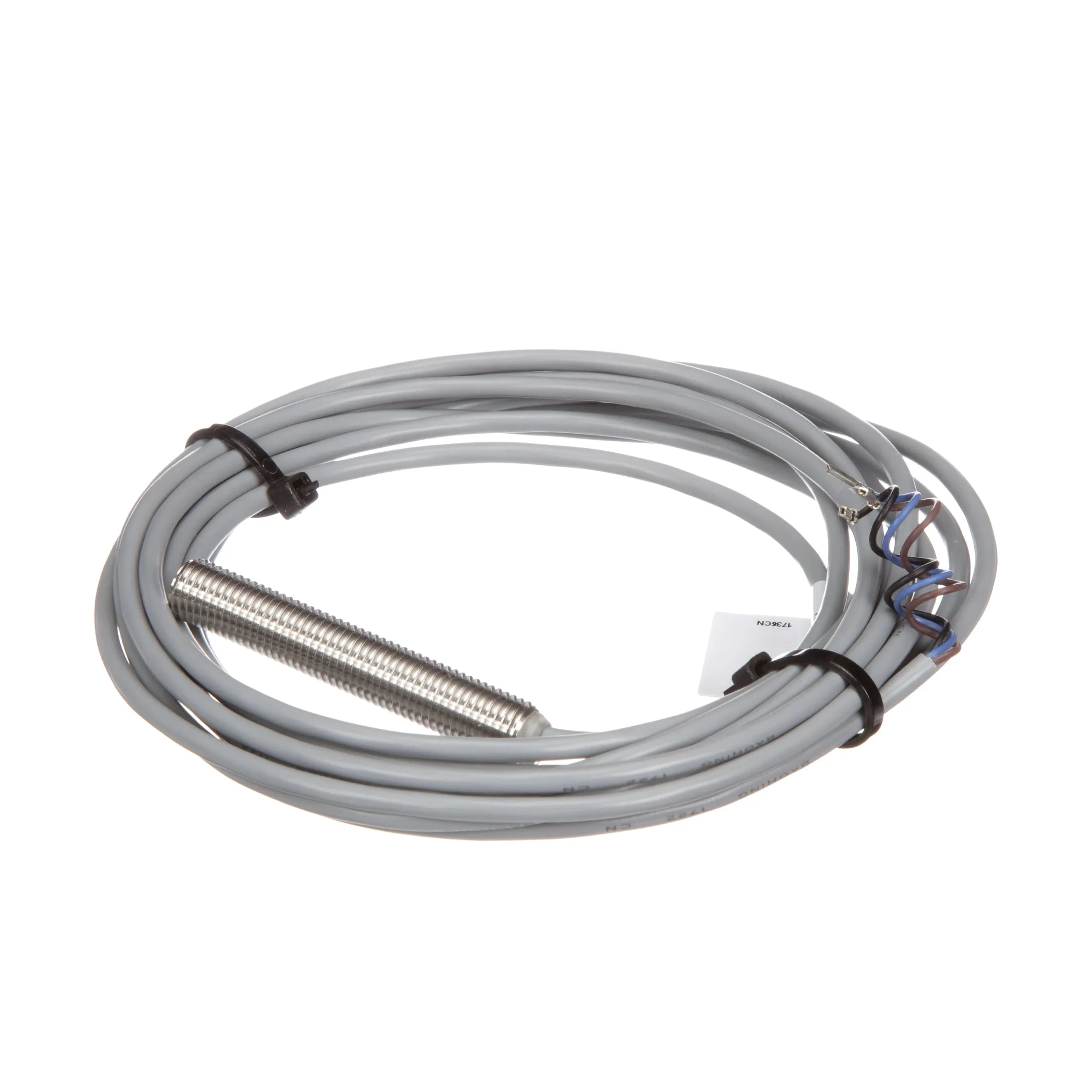

| Primary Type | Inductive Proximity Sensors |
| Series | |
| Shielding | Shielded |
| Switch Function | Normally open (NO) |
| Temperature, Ambient | 70 °C |
| Tolerance | ±10 % |
| Torque | 3 Nm |
| Vibration | 55 Hz, 1 mm ampl., 3x30 min |
| Voltage, Operating | 24.0 V |
Overview
Our inductive Global sensors for object detection in metal areas are robust and reliable. With a wide range of over 500 variants, we offer the right inductive sensor for every application. The technology, which is in use worldwide, has an optimum price/performance ratio and can also be delivered in large quantities in a short amount of time.
