Now Comes with a wiring Harness
Features:

• Field Weakening and MTPA (Maximum Torque Per Amp) are supported.
• Internal Bluetooth module
• IMU for self-balancing applications (Onewheel, EUC, Robotics, etc.)
• Plenty of CPU resources are left so you can make your apps for the controller.
• Powered By STM32F4 microcontroller Running at 168MHZ
• Sensored and sensor-less FOC with auto-detection of all motor parameters
• Current and voltage measurement on all phases
• Variable Regenerative braking
• Brushless, brushed DC motors, IPM motors are supported
• A GUI that is easy on the eyes
• Adaptive PWM frequency to get as good ADC measurements as possible
• Good start-up torque in the sensor-less mode
• The motor is used as a tachometer, which is good for odometry
• Duty-cycle Control, Speed Control, Current Control, and Position Control
• Seamless 4-quadrant operation
• Interface to control the motor: PPM signal (RC servo), analog, UART, I2C, USB or CAN-bus
• Consumed and regenerated amp-hour and watt-hour counting
• Optional PPM signal output. Useful when e.g., controlling an RC car from a raspberry pi or an Android device.
• The USB port uses the modem profile, so an Android device can be connected to the motor controller without rooting
• Adjustable protection against
• Low input voltage
• High input voltage
• High motor current
• High input current
• High regenerative braking current
• Rapid duty cycle changes (ramping)
• High RPM (separate limits for each direction).

• When the current limits are hit, a soft back-off strategy is used while the motor keeps running. If the current becomes way too high, the motor is switched off completely.
• The RPM limit also has a soft back-off strategy.
• Realtime Data logging and Monitoring.

Specifications:

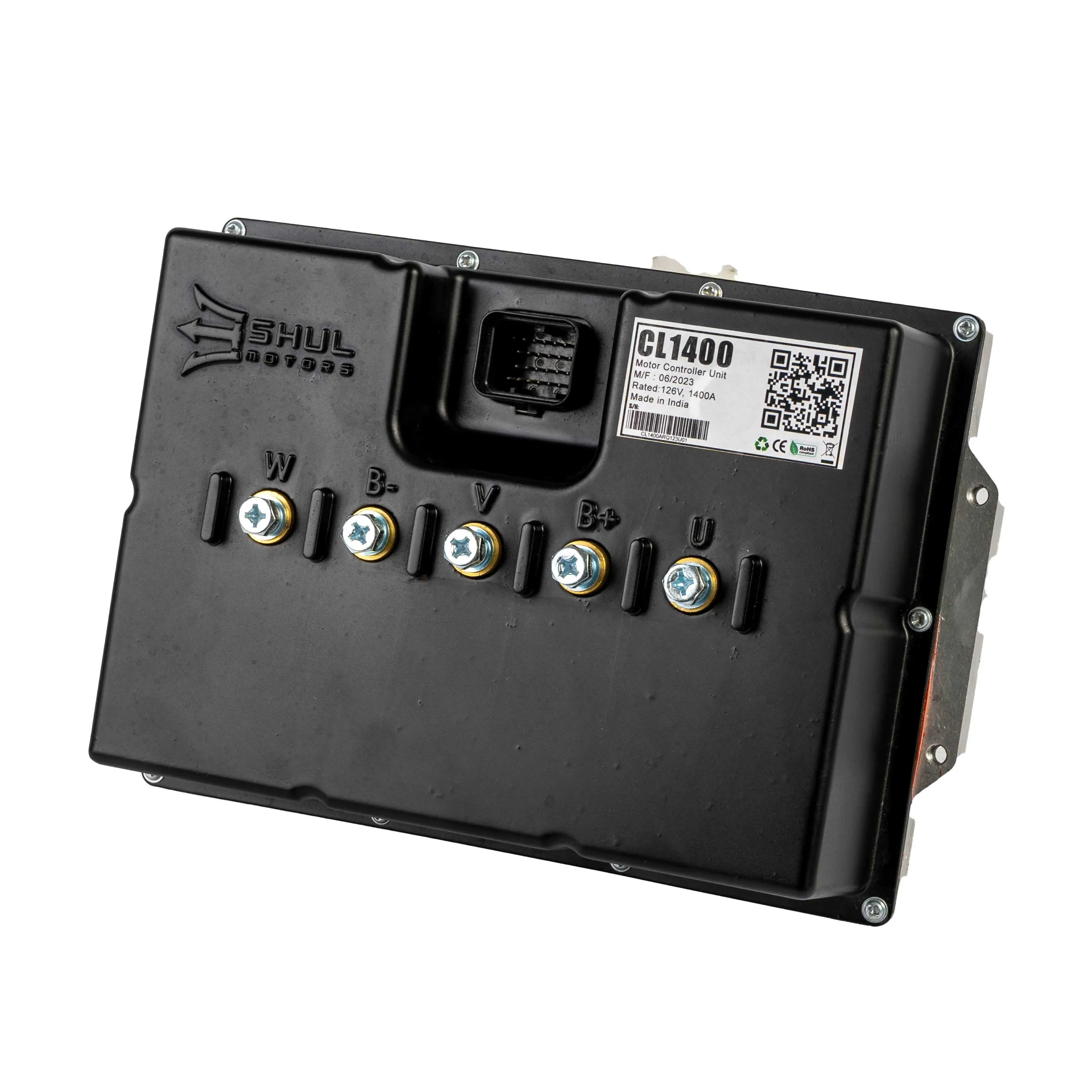

• Size: L 242mm * W 160mm * H 75mm
• Voltage: CL1400 (36-126 v (8-30s safe))
• Current: Continuous max 700A Battery, 1400A Phase (Values depend on the mounting and ambient temperature around the device!)
• Support BLDC square wave mode control and FOC sine wave mode.
• Firmware: latest (firmware update supported)
• ERPM:150000
• Control Interface Ports: USB, CAN, UART, Bluetooth
• Supported Sensors:  ABI, HALL, AS5047, AS5048A, Sensor-less
• Input Set Support: PPM, ADC, NRF, UART
• Circular Bus Bar Size: 10mm (Diameter)
• Gyroscope and Accelerometer (BMI160)
• Programmable: Yes

User Manuals, Firmware, Cad Files

You must register your 3shul within 7 days of receiving your unit.  First, create a user account , then navigate to the if you have an issue.  3 Month Warranty on all 3shul products.  See our warranty page for more info.

Bluetooth password for 3Shul #147258

Download the newest version of VESC-TOOL : For setup and resources:








Based on Vesc by VESC®-Project. VESC is a registered TM, owned by Benjamin Vedder
