Product Details
＋

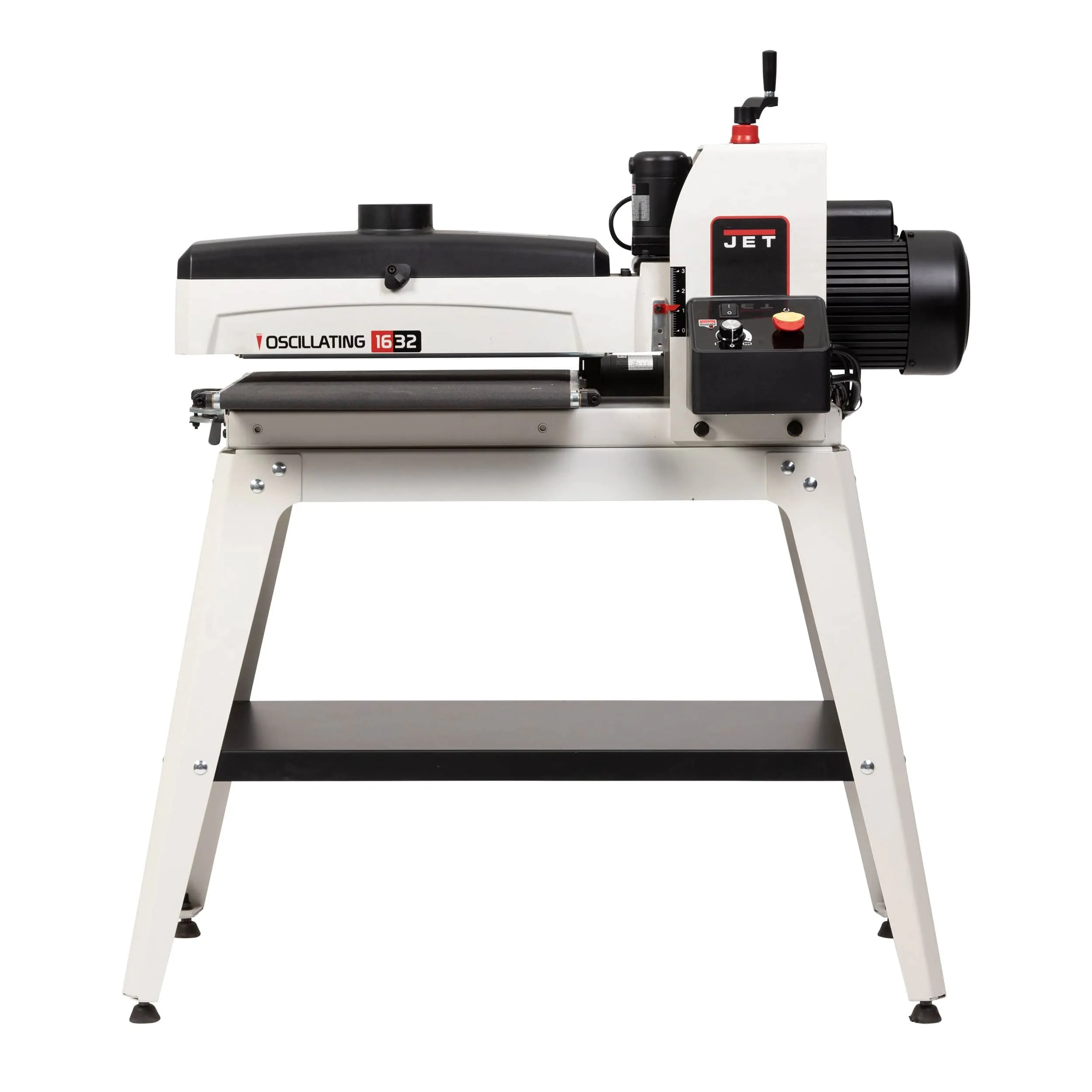

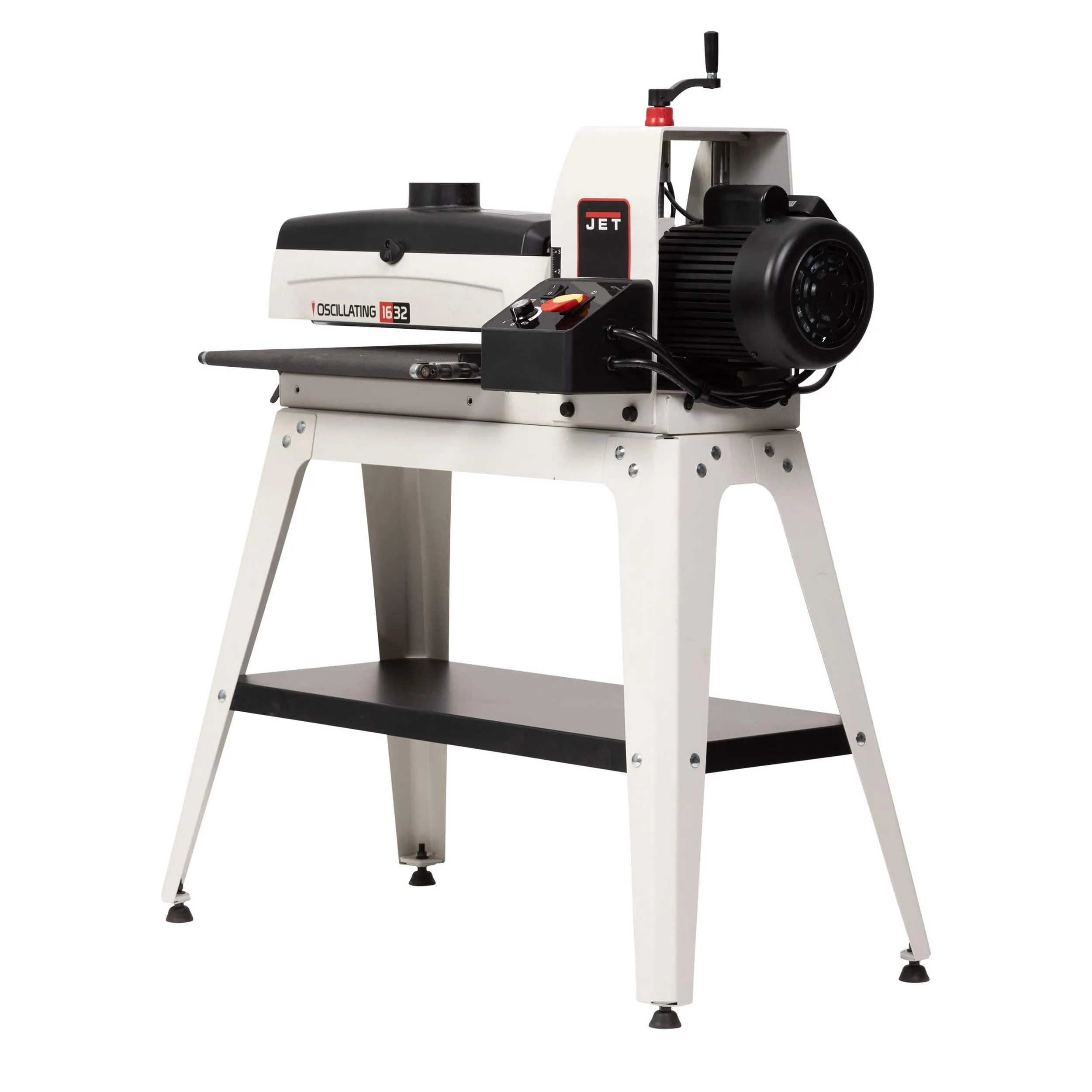

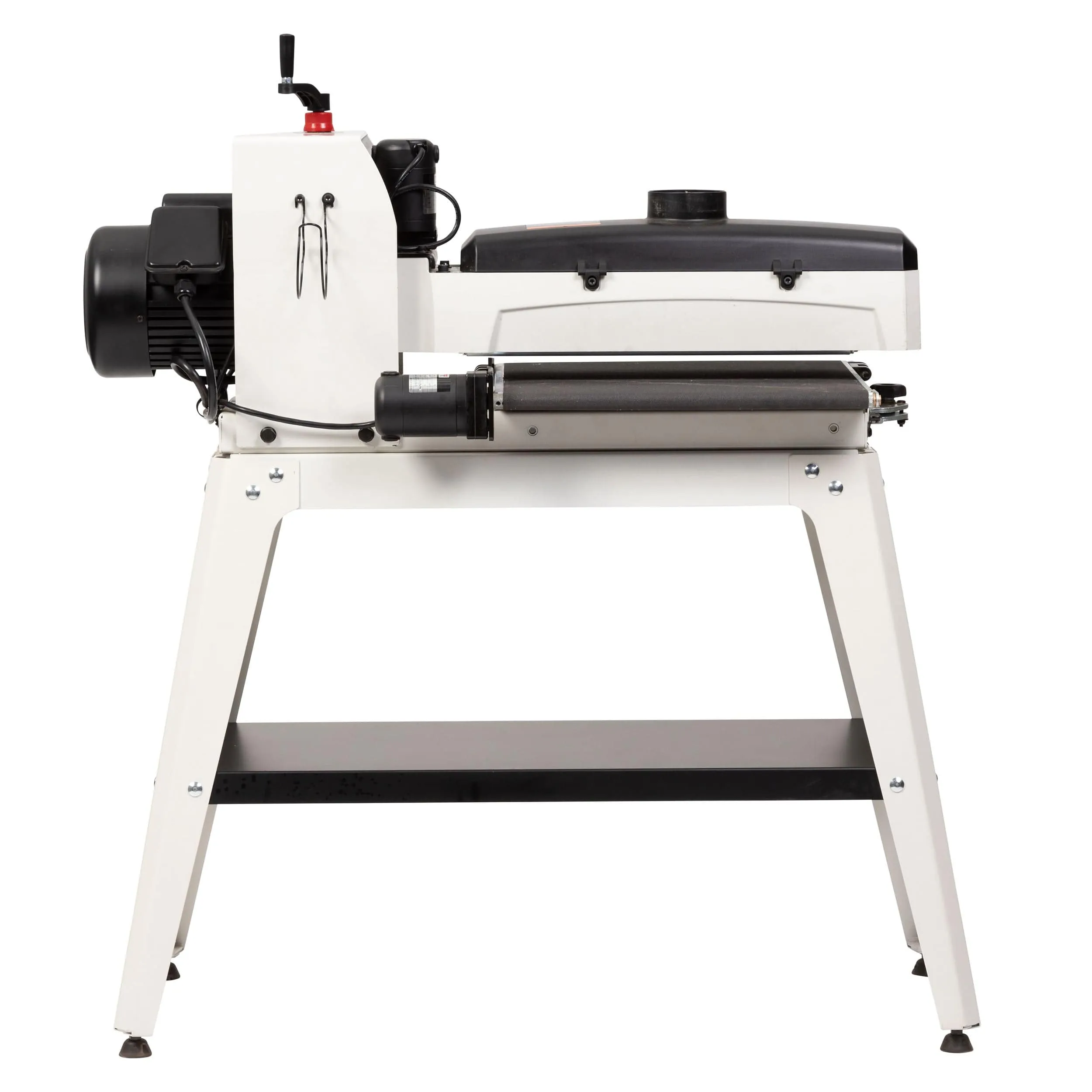

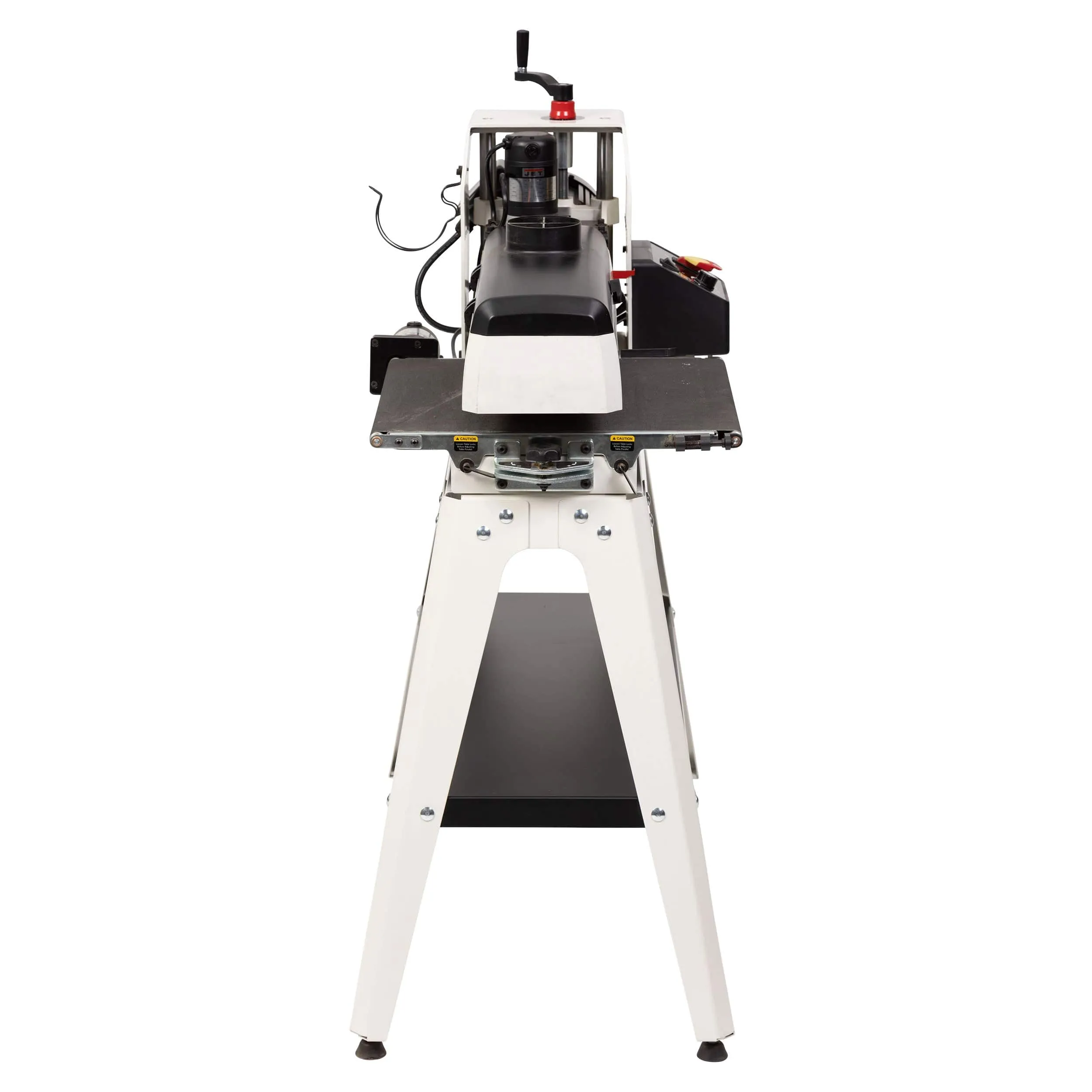

For an unbeatable sanding finish, the Jet® JWDS-1632 Oscillating Drum Sander, with its exclusive variable speed oscillating drum moving from left to right will minimizing visual scratch patterns in workpieces and increasing the lifespan of abrasive paper. Its patent-pending hood design extracts 97% of the dust that the sander creates. Additional features such as Sandsmart™ feed control technology, tool-less parallelism adjustment, and heavy duty steel stand make this popular sander the most innovative in its class.

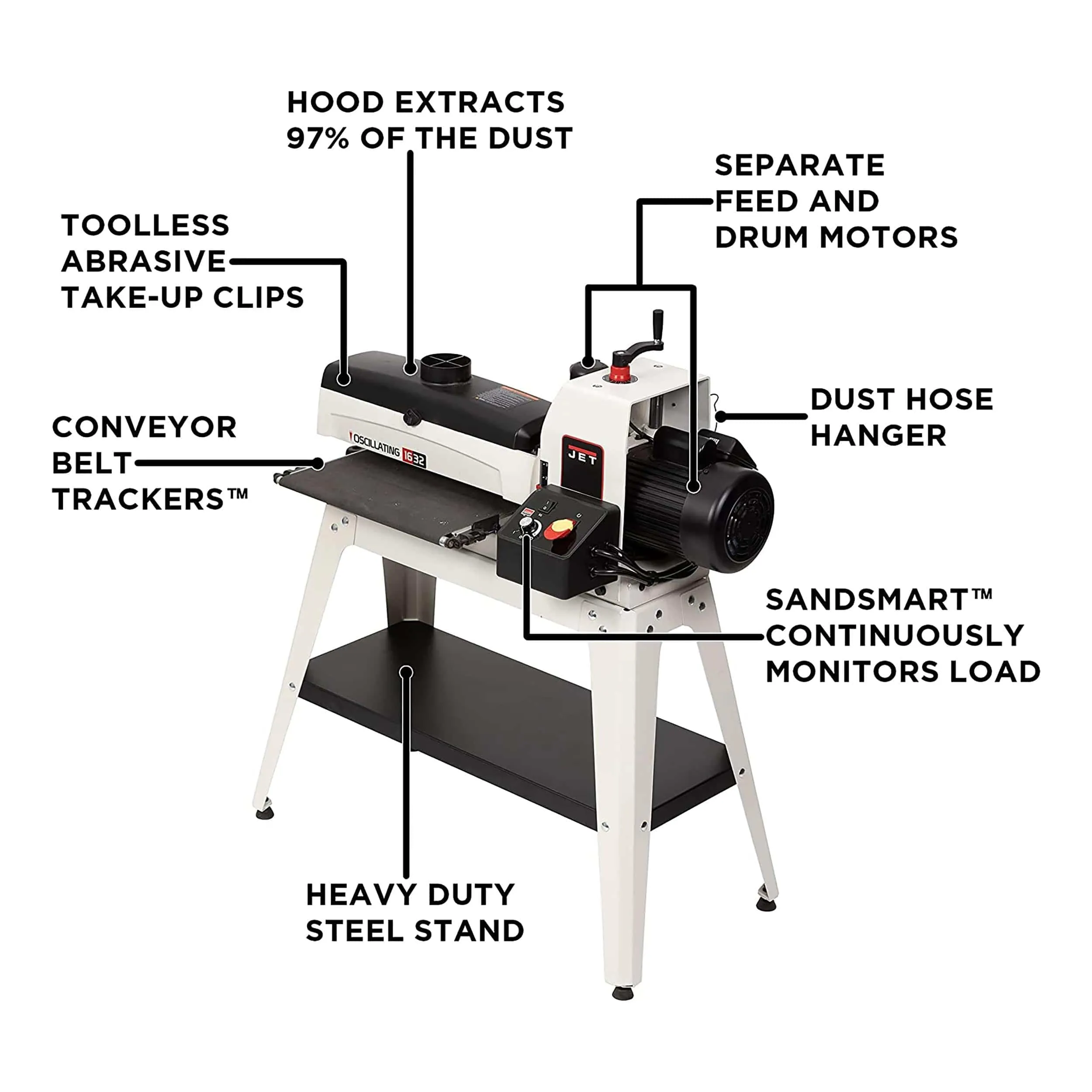

Features:

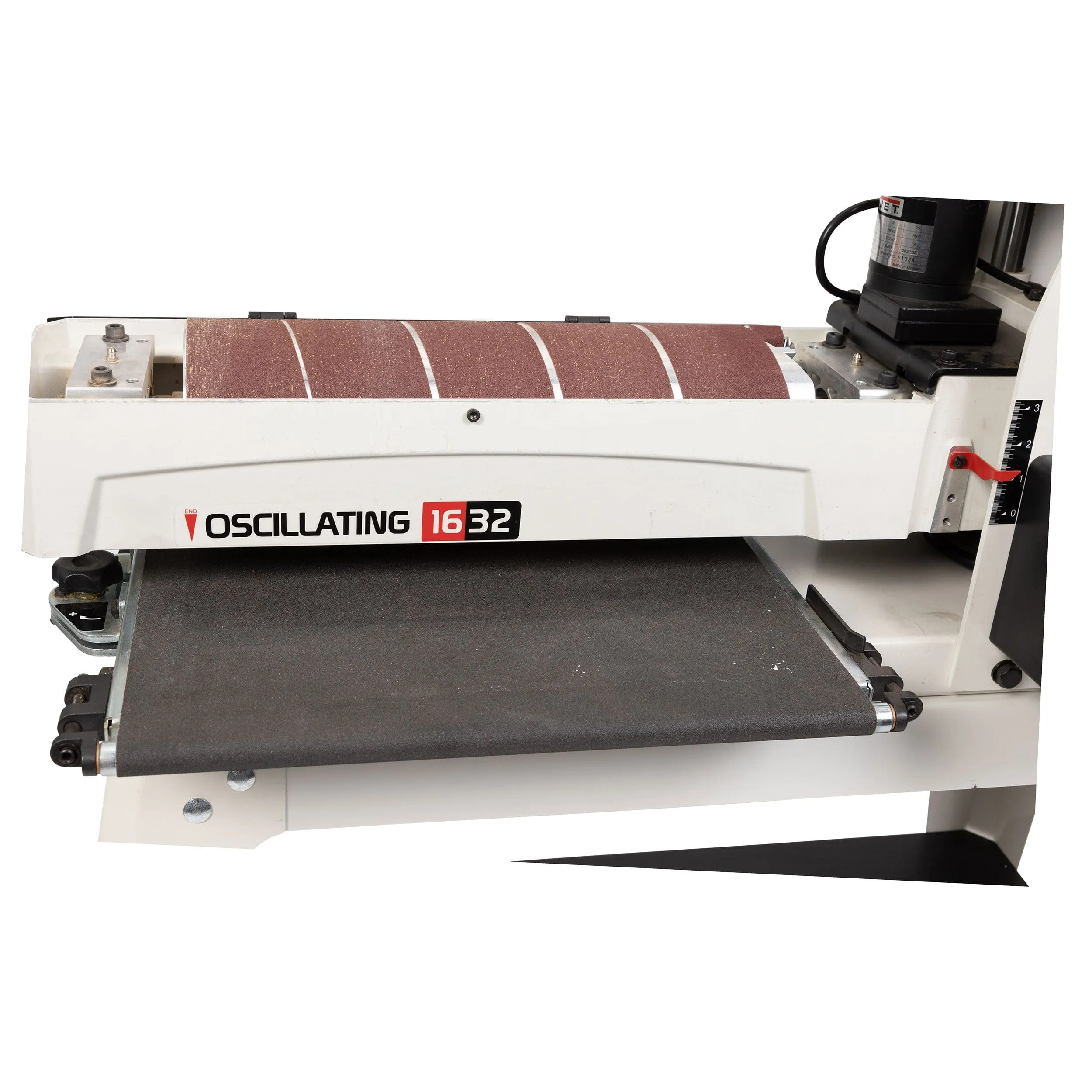

- Precision-machined and dynamically balanced extruded aluminum drum is designed to dissipate heat and has 3/4" of oscillating stroke
- Infinitely variable speed control of up to 10 feet per minute allows the user to choose the optimal feed rate

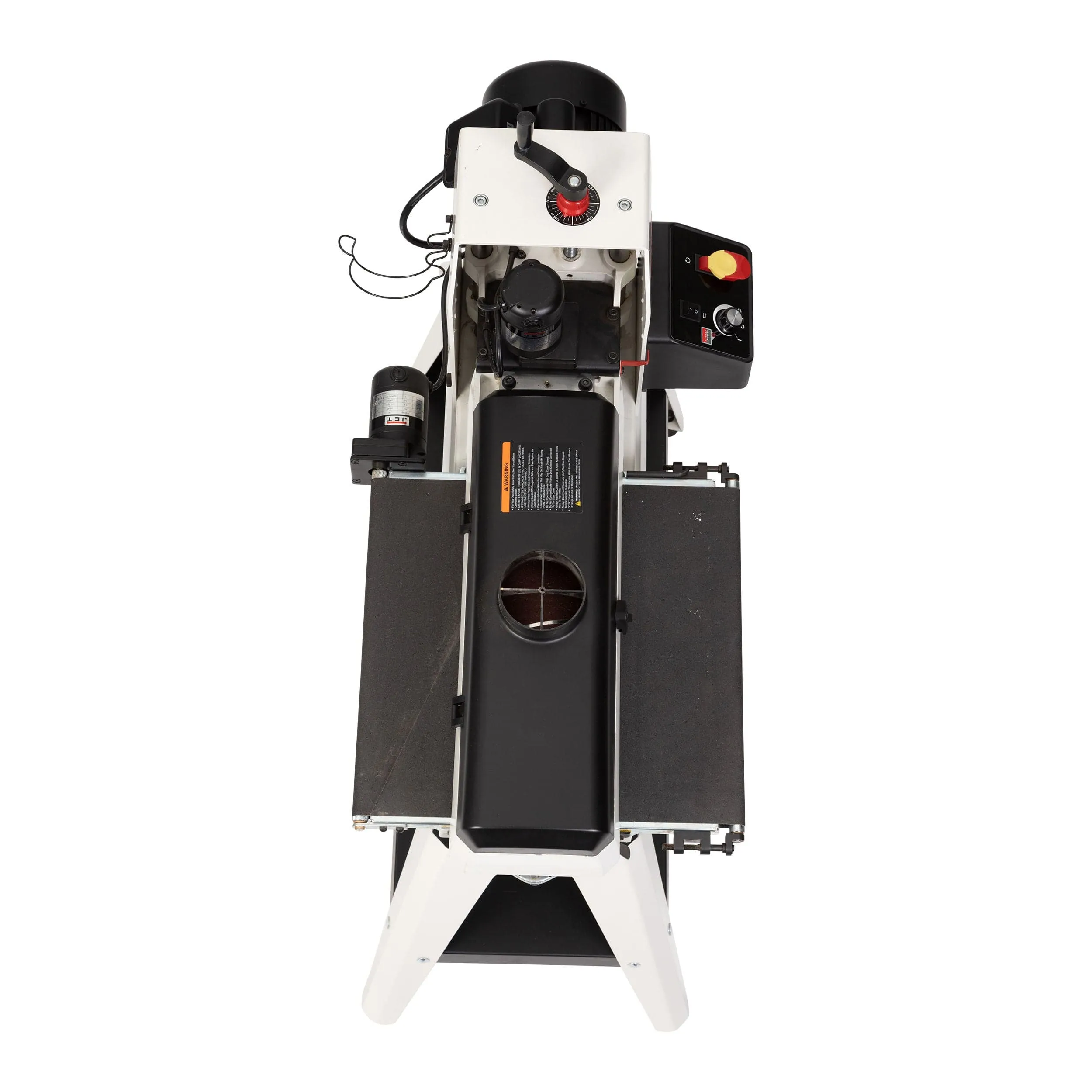

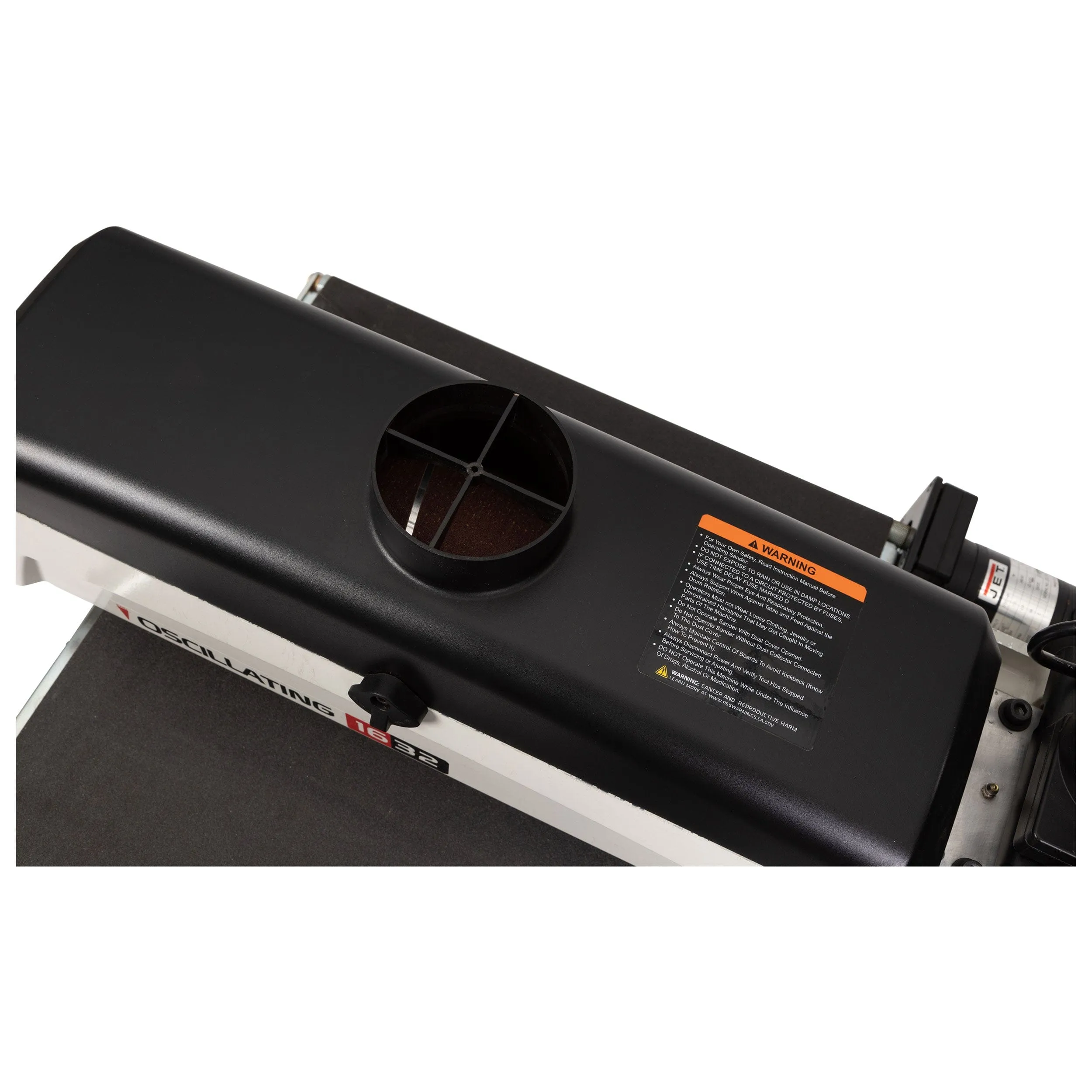

- Dust hood includes an integrated channel that mirrors the shape of the drum and directs chips and dust to the 4" collection port
- Separate feed and drum motors provide independent control, optimizing the performance of the sander
- Dust hose hanger for added ease of use
- Conveyor belt TRACKERS™ reduce the need for manual belt adjustments
- Tool less abrasive take-up clips make changing abrasives quick and easy
- Self-Cooling Drum

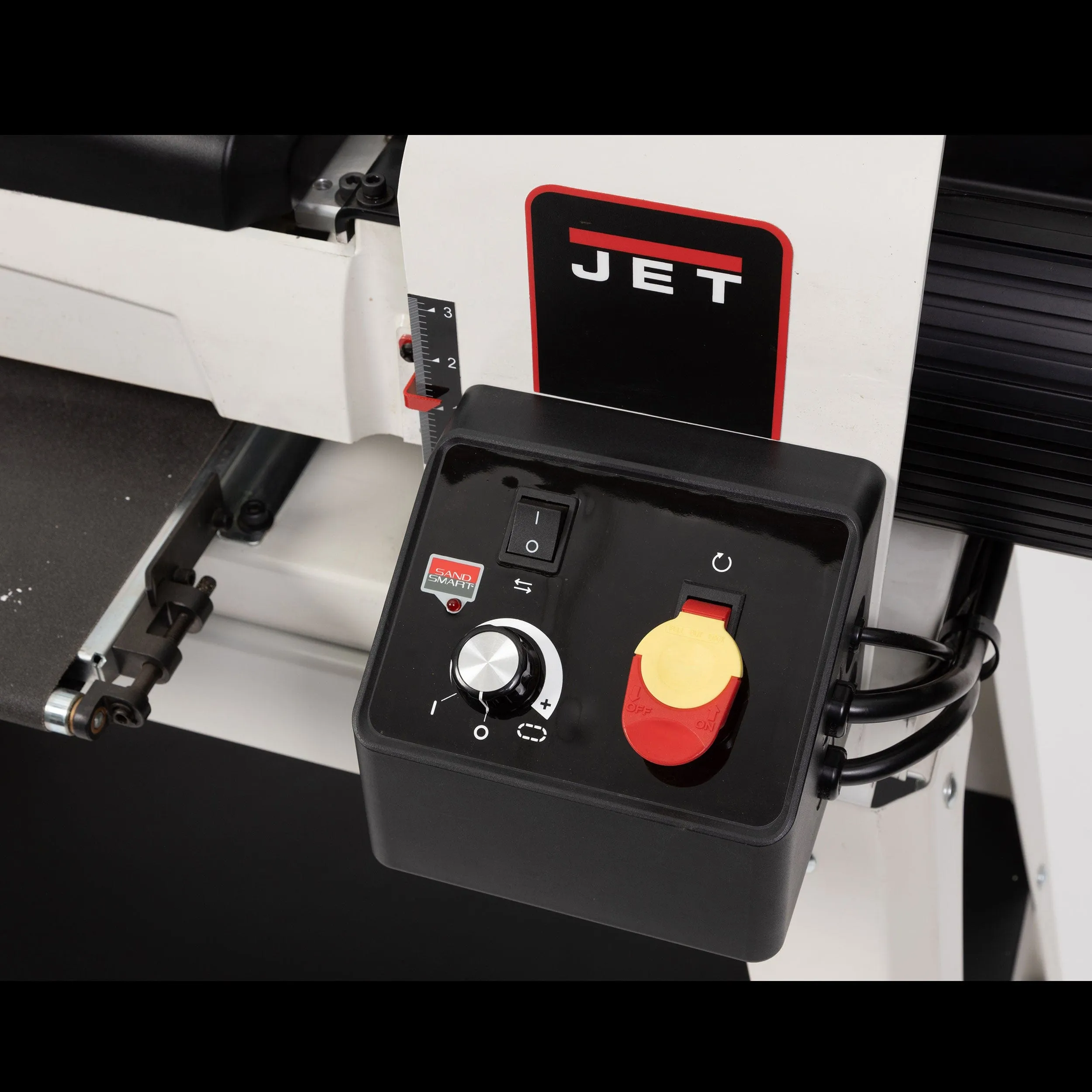

- Sandsmart™ control continuously monitors the load on the drum motor and automatically regulates the speed of the conveyor motor to maintain the highest feed rate without overload
Specifications:
- Product: Sanding Machine
- Type: Oscillating Drum Sander
- Style: Floor Standing
- Motor Power: 1-1/2 HP
- Motor Amps: 14A
- Voltage: 115V input wiring only
- Motor Phase: Single
- Conveyor Speed: 0-10 FPM
- Number of Sanding Drums: 1
- Drum Bearing Diameter: 1"
- Drum Diameter: 5"
- Drum Length: 16"
- Drum Speed: 1725 RPM
- Dust Collection: Minimum CFM Required - 400
- Dust Port: 4"

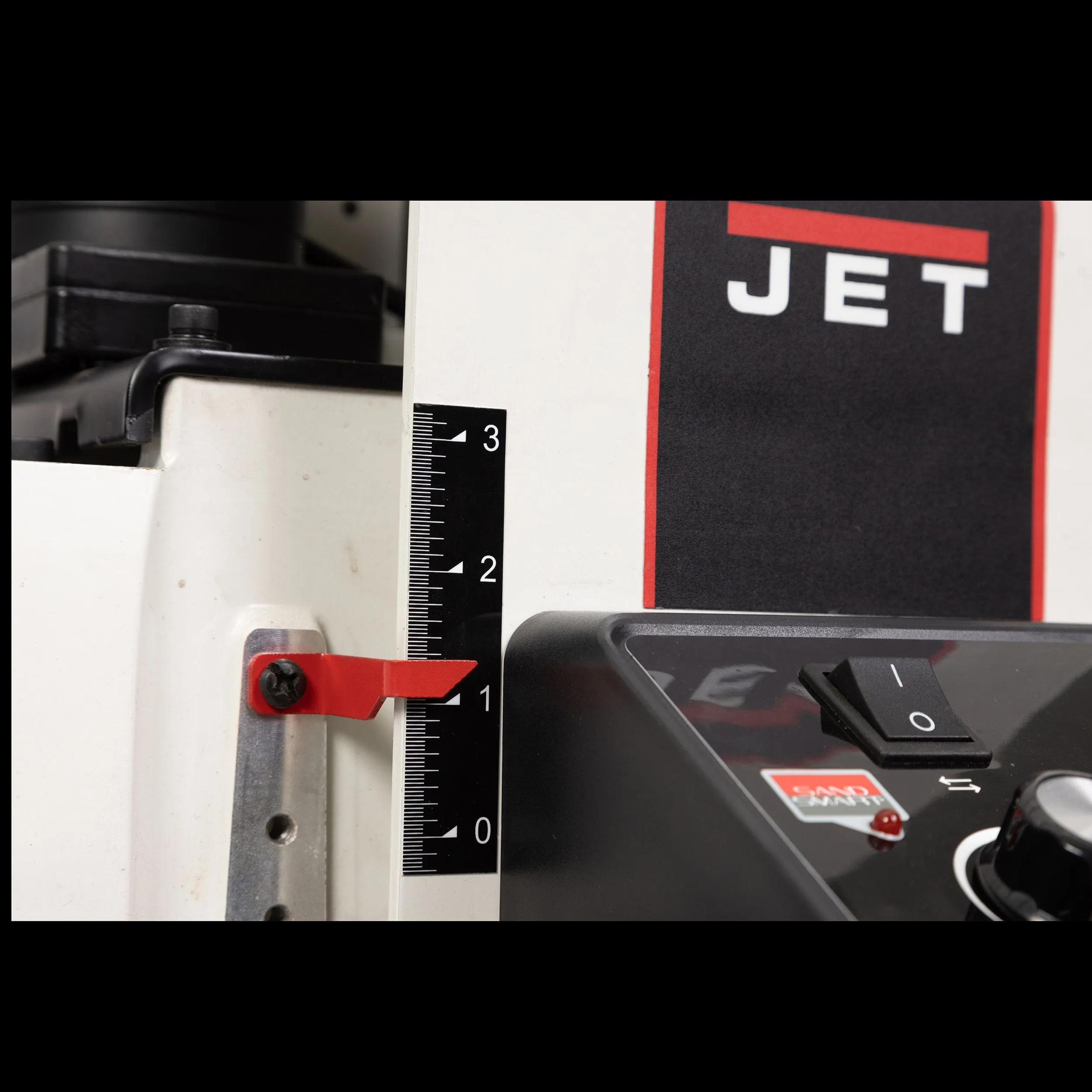

- Maximum Board Thickness: 3"
- Minimum Board Thickness: 1/32"
- Maximum Board Width: 16"
- Minimum Board Length: 2-3/8"
- Recommended Circuit Size: 20 Amp Breaker
- Overall Dimensions (L x W x H): 42-13/16" x 20-5/16" x 49-1/8"
- Net Weight: 191 lbs
What's Included:
- (1) Sander with Conveyor Table
- (1) Stand Assembly
- (1) 80-grit, 3-inch wide abrasive strip (pre-installed)
- (1) Instruction manual
- (1) Warranty Card
